Digital Video Recorder User Manual
4
Main menu setup guide
Click right mouse or press ESC button on the front panel, the control bar will display on the bottom of the screen, refer to
Fig 4-1:

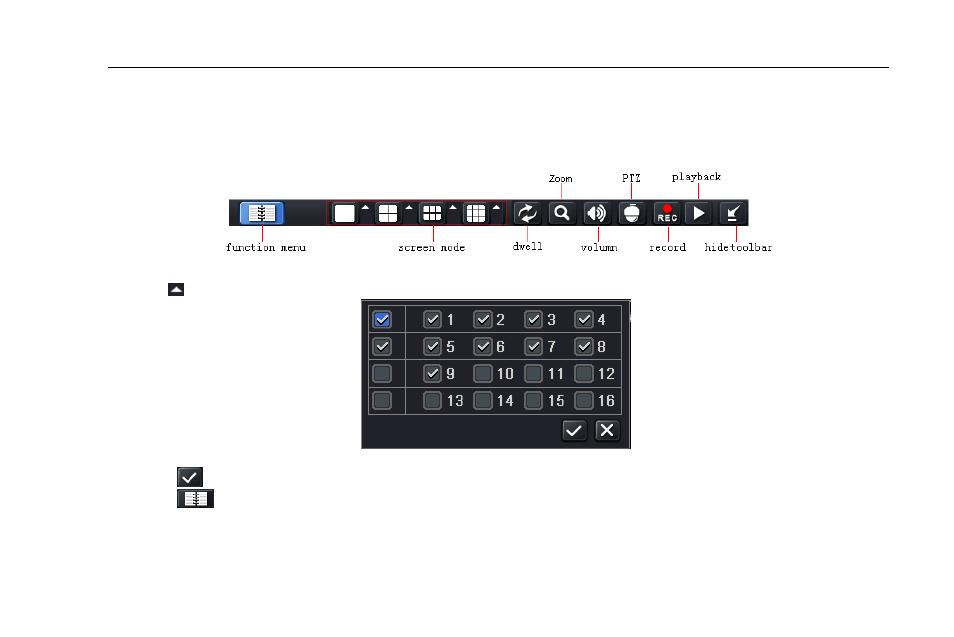

Fig 4-1 main menu toolbar
Click the icon beside the screen display mode, a channel select dialog will appear as below:
Take 8-channel DVR for example: user can tick off 8 channels form 1-ch to 16-ch at random to display the live pictures.
Then click
button to confirm the setting.
Click Menu button, the interface will pop-up as Fig 4-2; press MENU button on the front panel or operate with remote
controller also can display the main menu.
26
