Digital Video Recorder User Manual
2.3 Rear Panel Instructions
2.3.1 Rear Panel Interface

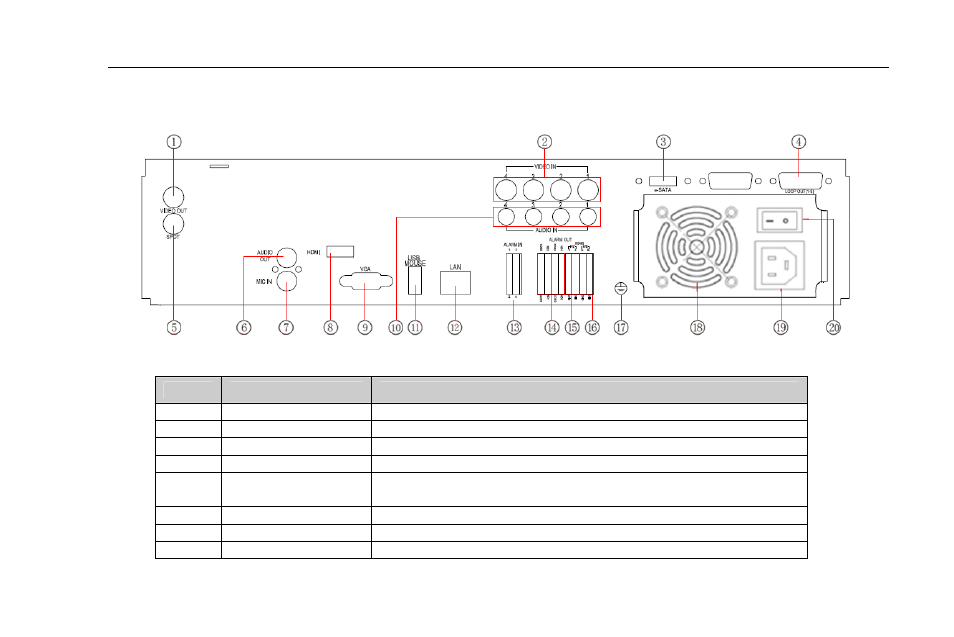

The rear Panel interface for 4-ch is shown as Fig 2.3:
Fig 2.3 Rear Panel for 4-ch
Item Name Description
1 Video out Connect to monitor
2 Video in Video input channels from 1-4
3 E-SATA Connect to HDD for backup
4 LOOP OUT For outputting 1-4ch image independently
5 Spot out
Connect to monitor as an AUX output channel by channel.
Only video display, no menu show
6 Audio out Audio output, connect to the sound box
7 MIC IN Talk
8 HDMI port Connect to high-definition display device
13
