Digital Video Recorder User Manual
Item Name Description
11 USB port
To connect external USB devices like USB flash, USB HDD
for backup or update firmware; or connect to USB mouse
12 LAN Network port
13 ALARM IN Connect to external sensor1-8
14 ALARM OUT 4ch relay output. Connect to external alarm.
15 P/Z Connect to speed dome
16 K/B Connect to keyboard
17 GND Grounding
18 FAN For cooling the device
19 POWER INPUT AC 110Vor 110V
20
POWER
SWITCH
Switch on/off
Tab 2.2 Definitions of Front Panel Buttons

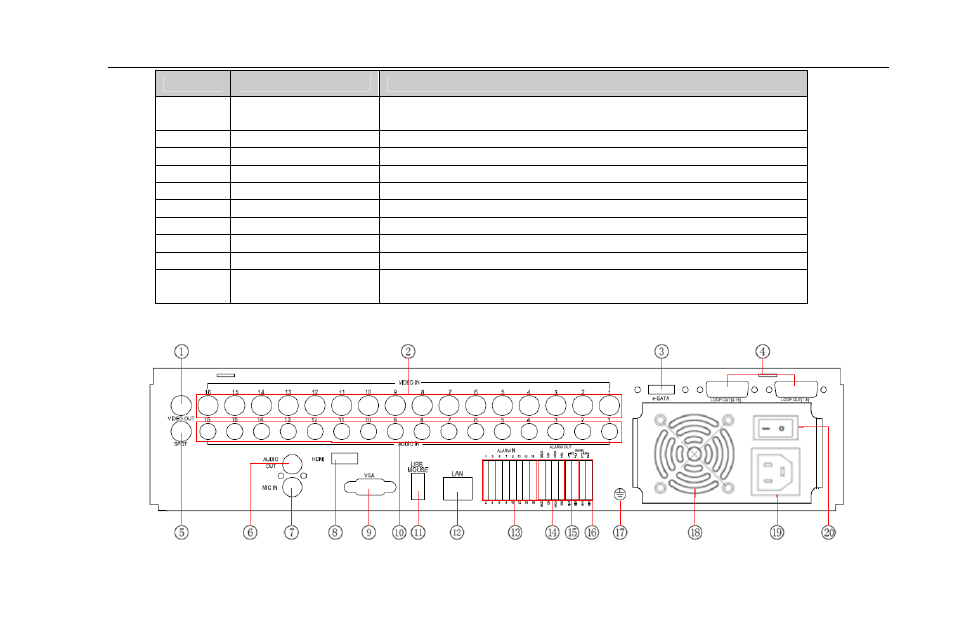

The rear Panel interface for 16-ch is shown as Fig 2.5:
Fig 2.5 Rear Panel for 16-ch
16
