4/8/16DVR Quick Start Guide
5

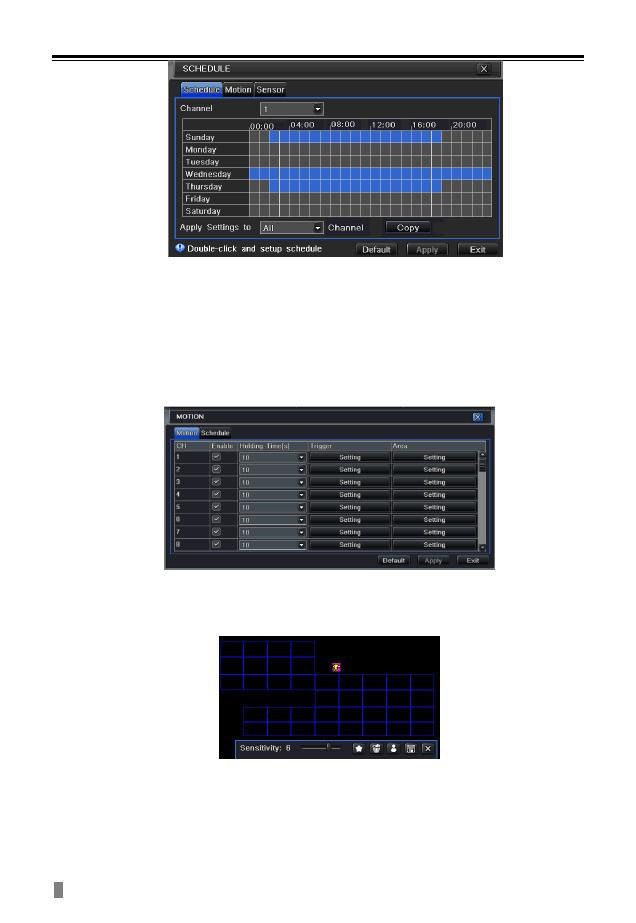

Fig 4-3 Schedule record setup
4.2.3 Motion Detection Recording
Motion detection recording: when there is a motion event detected, the camera
will be triggered to record and have an alarm out (This feature is available only
in 16-ch DVR).
Enter into main menu-alarm configuration-motion configuration (refer to Fig 4-4)
and enable Detection first;
Fig 4-4 Motion detection interface
Enter into Motion detection area (refer to Fig 4-5) to set Sensitivity and
Detection area.
Fig 4-5 motion detection area setup
4.2.4 Alarm Recording
Enter into main menu-Alarm configuration-Sensor alarm (refer to Fig 4-6),
enable Detection and then setup the device type. (This feature is available only
