4/8/16DVR Quick Start Guide
2

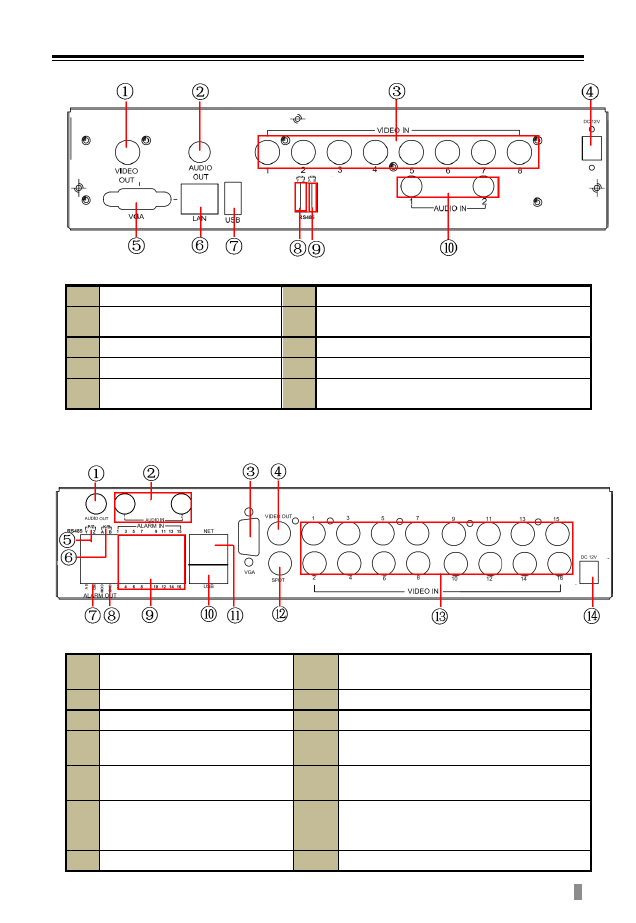

2.2 Rear view for 8-ch DVR
Fig 2-2 Rear view for 8-ch DVR
1
Connect to monitor
6
Network port
2
Audio output, connect to the
sound box
7
Connect USB mouse or connect external USB
devices
3
Video input channels from 1-8
8
Connect to speed dome
4
POWER INPUT
9
Connect to keyboard
5
VGA output, connect to
monitor
10
2-CH Audio input
2.3 Rear view for 16-ch DVR
2-3 Rear view for 16-ch DVR
1
Audio output, connect to the
sound box
2
2-CH Audio input
3
VGA output, connect to monitor
4
Connect to monitor
5
Connect to speed dome
6
Connect to keyboard
7
1-ch relay output. Connect to
external alarm
8
+5 V and Grounding
9
Connect to external sensor1-16
10
Connect USB mouse or connect external USB
devices
11
Network port
12
Connect to monitor as an AUX output
channel by channel. Only video display, no
menu show
13
Video input channels from 1-16
14
POWER INPUT
