4/8/16DVR Quick Start Guide
1
1. Install Hard Drive
Notice: 1.This series support one SATA hard drive. Please use the hard drive the
manufacturers recommend specially for security and safe field.
2. Please calculate HDD capacity according to the recording setting. Please refer to
“Appendix B Calculate Recording Capacity”.
Step1: Unscrew and Open the top cover
Step2: Connect the power and data cables. Place the HDD onto the bottom
case as Fig 1-1.
Step3: Screw the HDD as Fig 1-2.
Note: For the convenience to install, please connect the power and
data cables firstly, and then screw to fix.

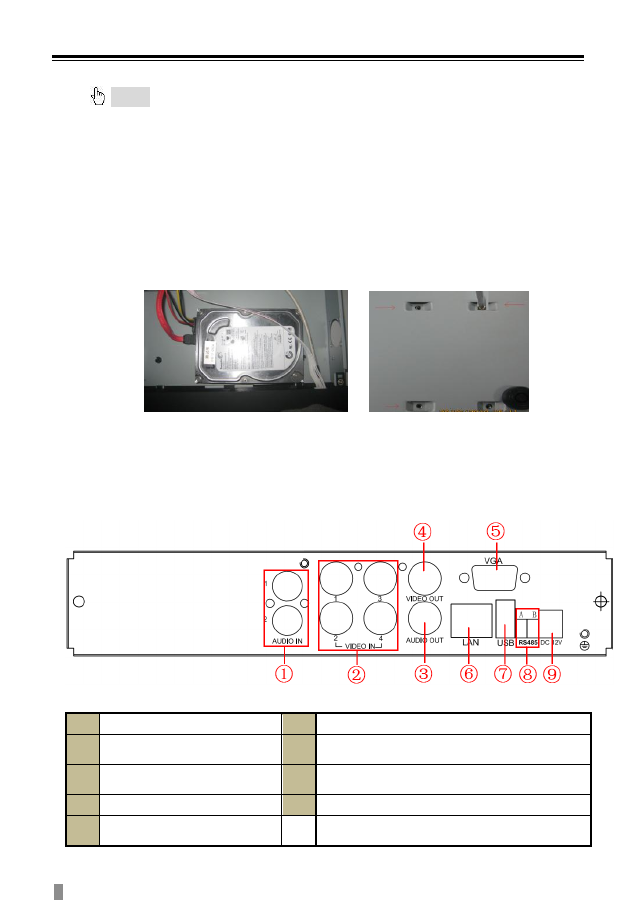

Fig 1-1 Connect HDD Fig 1-2 Screw HDD
2. Connections
2.1 Rear view for 4-ch DVR
Fig 2-1 Rear view for 4-ch DVR
1 2-CH Audio input 6 Network port
2
Video input channels from 1-4
7 Connect USB mouse or connect external USB
devices
3 Audio output, connect to the
sound box
8
Connect to speed dome or keyboard
4 Connect to monitor 9 POWER INPUT
5 VGA output, connect to
monitor
