2 Hardware Installation
Notice: Check the unit and the accessories after getting the NVR.
Please don‟t power up the unit till the physical installation is complete.
2.1 Install Hard Drive
Notice: 1. This series support one SATA hard drives. Please use the hard drive the manufacturers recommend specially for
security and safe field.
2. Please calculate HDD capacity according to the recording setting. Please refer to “Appendix B Calculate
Recording Capacity ”.
Step1: Unscrew and Open the top cover
Step2: Connect the power and data cables. Place the HDD onto the bottom case as Fig2.1.
Step3: Screw the HDD as Fig2.2

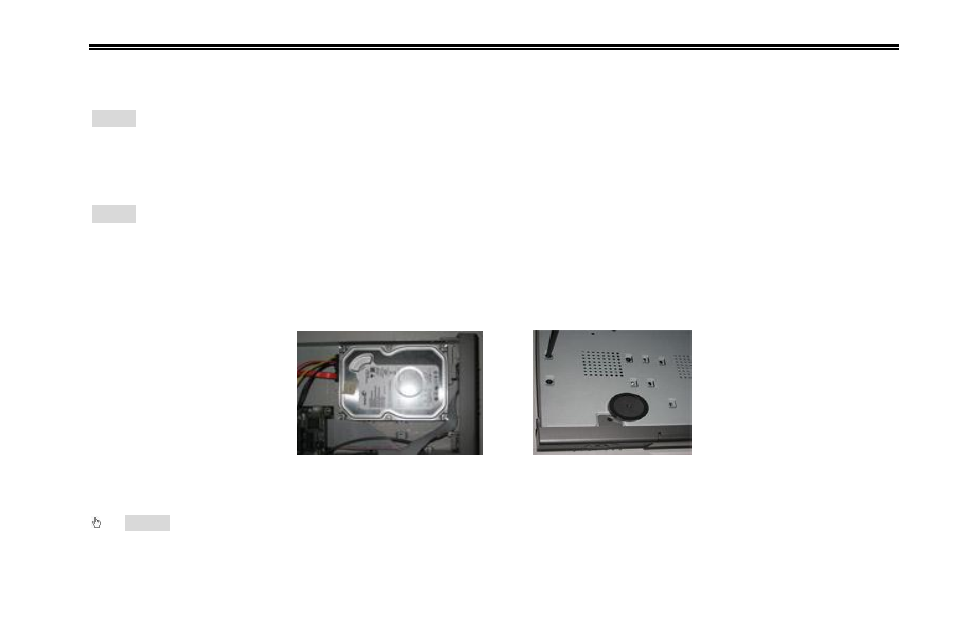

Fig 2.1 Connect HDD Fig 2.2 Screw HDD
2.2 Front Panel Descriptions
Notice: The front panel descriptions are only for reference; please make the object as the standard.
One kind of the front panel:
