COP-USA DVR2716XD-L - Manual (Page 38)

DVR User Manual
32

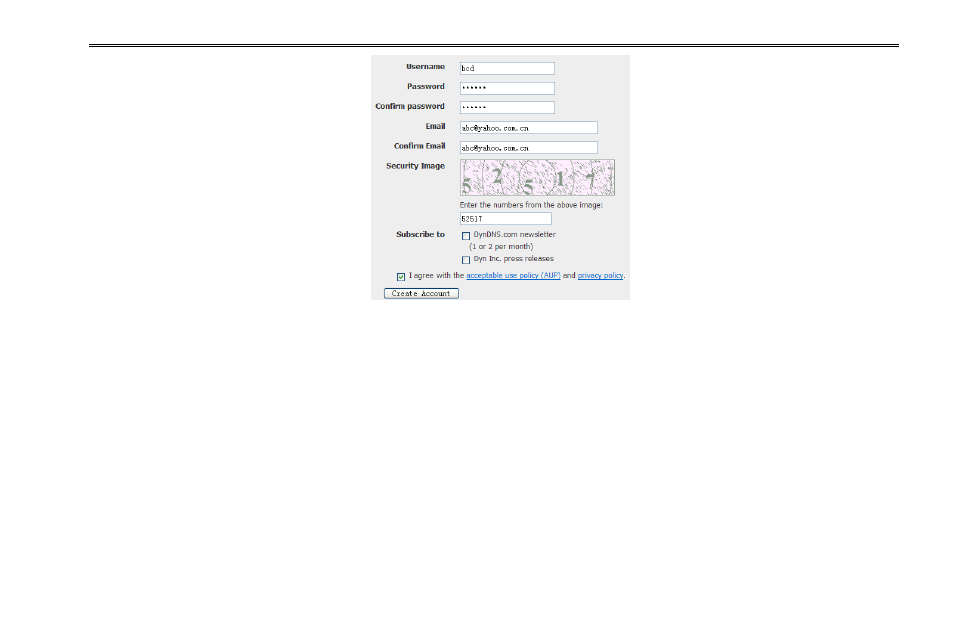

Click” Create Account” button to create user account. After that, you shall provide your card number, card expiration and security code as
well as billing address. Finally click “sign up for trial” button.
Now, according to the domain name registration of “DDNS”
，the domain name for DVR is “abc.dyndns.tv”, username is “bcd” and
password is “123456”
Connect DVR via network:
Step 1: Enter into Main menuNetworkother settings, checkmark DDNS, select “Dyndns” at the DDNS Sever pull down list box and
input user name and password.
Step 2: Enter into configuration interface of the router to map the server port and IP address (if the user enables UPnP function, he can skip
this step). Click Save button to save the setting
Step 3: Login IE browser and input registered domain name “http://www.abc.dyndns.tv” to connect DVR.
Definitions and descriptions of network configuration:
