8/16-CH DVR Quick Start Guide
1

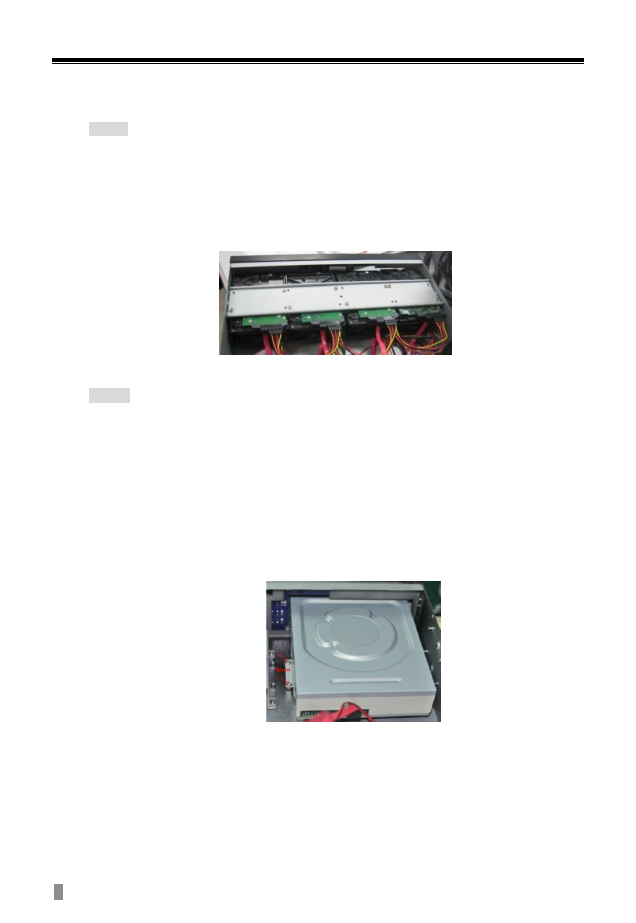

1. Install Hard Drive &DVD Writer
1.1 Install Hard Drive
Notice: 1. Support four SATA hard drives. Please use the hard drive the manufacturers
recommend specially for security and safe field.
2. Please disconnect the power before being connected to other devices. Don't hot plug in/out
Step 1: Unscrew and Open the top cover to connect the power and data
cables. Place the HDD onto the bottom case as below.
Step 2: Screw the HDD.
Connect HDD
Notice: For the convenience to install, please connect the power and data cables firstly, and
then screw to fix.
1.2 Install DVD Writer
Step 1: Unscrew and Open the top cover to connect the power and data
cables.
Step 2: Unscrew and take the barrier out of the front panel. Then connect the
power and data cables. Finally, put the DVD with the holder into the case, let
the screw holes of the case aim at the holder‟s and screw them firmly.
Connect the DVD Writer
2. Rear Panel Instruction
