4 Main Menu Setup Guide
Click right mouse or press menu button on the front panel to display the menu tool bar on the bottom of the screen. Refer to Fig 4-1:

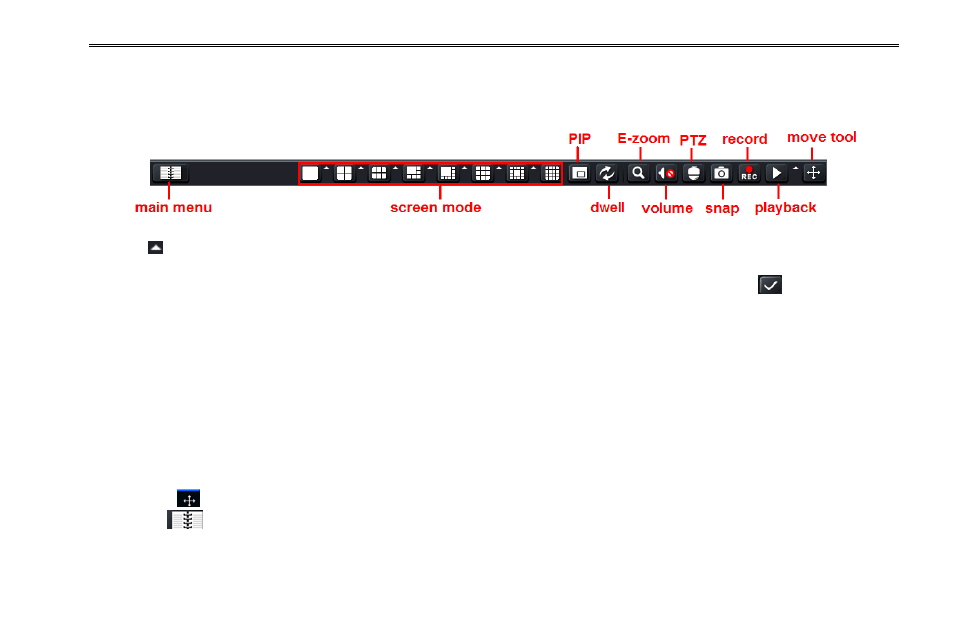

Fig 4-1 Menu Toolbar
Click the icon beside the playback icon to select the time to playback. For example, if 2 minutes is selected and then click playback
button, it will start to playback from the past 2 minutes.
PIP: Click PIP button to choose a channel and then click None button to choose another channel. Next, click button to save the
settings. Now you can see a picture in the other picture on live.
Dwell: Dwell means to display live images from different cameras in a sequence. The images may be displayed as a single channel or in a
grid fashion from different cameras. Dwell mode is enabled only when the chosen display mode is not able to display all the available
cameras.
E-Zoom: Single channel large screen electronic amplification.
Volume: Enable sound.
PTZ: Click the PTZ button to control rotation position, speed and auto scan of the PTZ connected to the IP camera.
Snap: Use this button to take snapshots. These pictures will automatically be saved in the HDD.
Record: Click this button to start/stop recording.
Playback: Click this button to playback the recorded files.
User can click button and drag it anywhere with the left mouse
Click Menu button to pop up a window as Fig 4-2. You can also press MENU button on the front panel or operate with remote
controller to display the main menu. Clicking Setup icon will pop-up the configuration menu:
