COP-USA DVR2716XD-L - Manual (Page 114)

8/16-CH DVR Quick Start Guide
9
This unit supports four kinds of playback
8.1 Live Playback
Click Play button on the main menu bar to playback the record. User can
do concrete operation by clicking the buttons on screen.
8.2 Playback by Time Search
Step 1: Enter into MenuSearchTime Search tab.
Step 2: Select date and channels on the right hand side and press “Search”
button. A date with highlighted borderline indicates presence of data.
Step 3: Set the start time by clicking a particular grid or by entering the
specific value in the start time field.
Step 4: Select the channel display mode and click
button to play record.

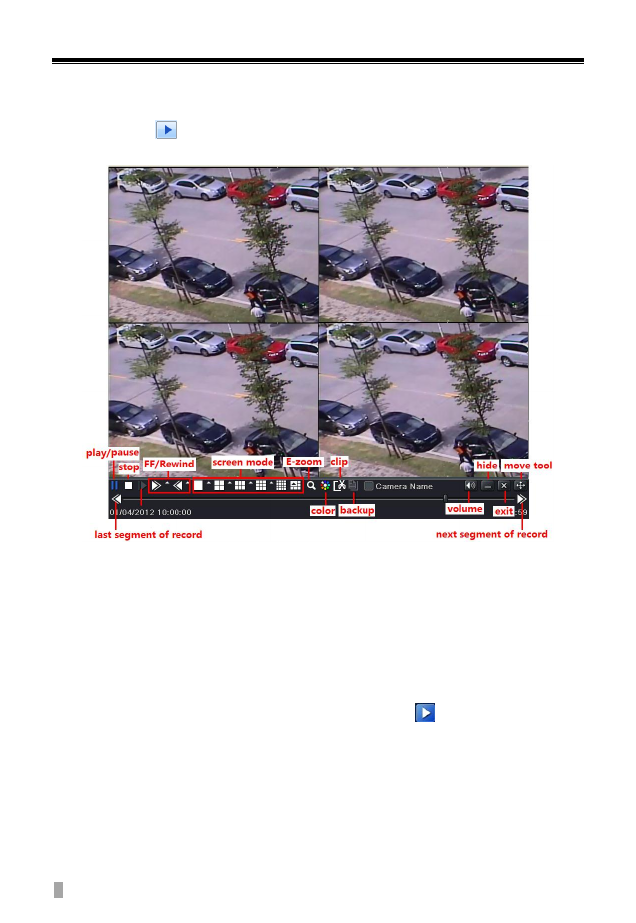

Use the playback toolbar to control the playback.
