COP-USA DVR2716XD-L User Manual
Page 13
DVR User Manual
7

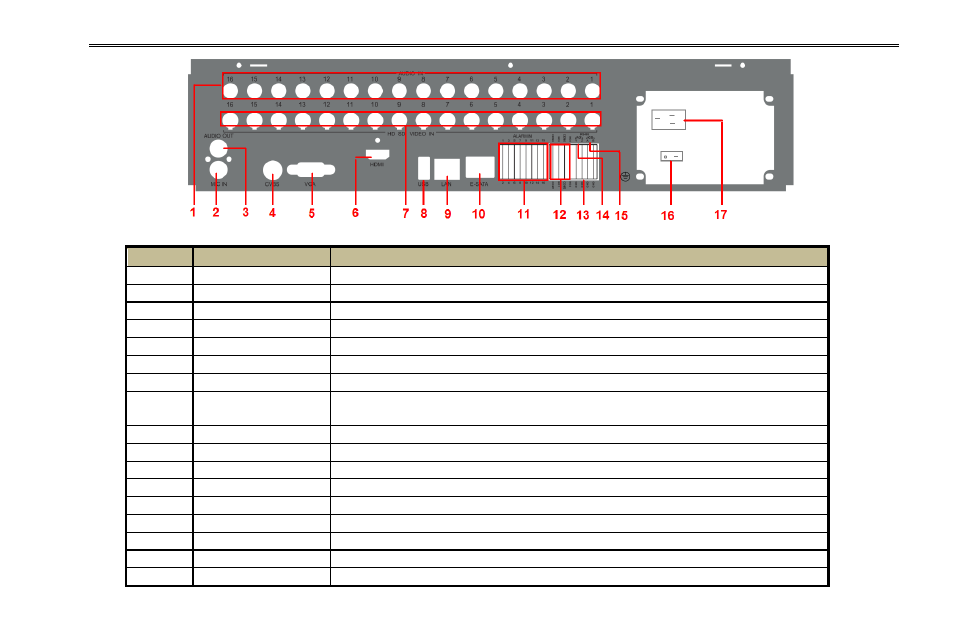

Fig 2.4 Rear Panel for 16-CH
Item
Name
Description
1
Audio in
Audio inputs
2
MIC in
Connect to microphone.
3
Audio out
1-ch audio output. Connect to the sound box
4
CVBS port
CVBS video signal output
5
VGA port
VGA output, connect to monitor
6
HDMI port
Connect to high-definition display device
7
HD SDI Video in
HD SDI video signal inputs.
8
USB port
To connect external USB devices like USB flash drive, USB HDD for backup or
updating firmware.
9
LAN
Network port
10
E-SATA
Connect to HDD for backup.
11
Alarm in
Alarm Inputs for connecting sensors
12
Alarm out
Relay Output. Connect to external alarm.
13
GND
Grounding
14
P/Z
Connect to speed dome. Y is TX+, Z is TX-.
15
K/B
Connect to keyboard. A is TX+, B is TX-.
16
Power switch
Turn on/off the power supply
17
Power input
AC 110V-220V
