4.5.1 Sensor
Sensor includes three sub menus: basic, alarm handling and schedule.
Operate the following steps to configure sensor alarm:
Step1: Enter into MenuSetupAlarmSensorBasic tab. Refer to Fig 4-16:
Step2: Enable channels by checking the checkboxes beside the desired channels.
Step 3: Set the alarm type according to triggered alarm type. Two option: NO and
NC.
Step4: Click “Apply” button to save settings.
Step5: Enter into Alarm Handling tab. Refer to Fig 4-17.
Select hold time and then click Setting button. A dialog box will pop-up as Fig

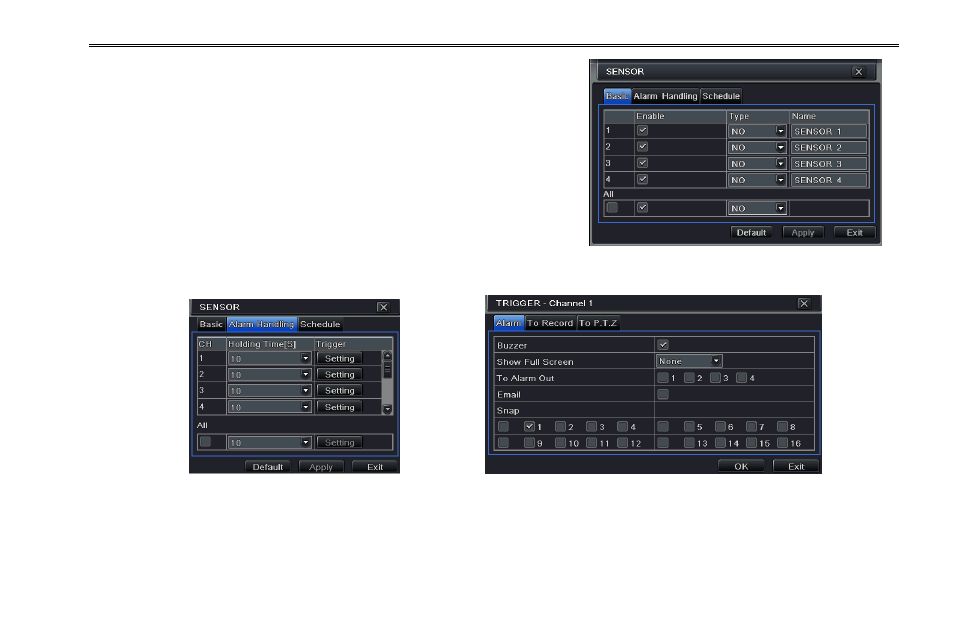

4-18: Fig 4-16 Alarm Configuration-Sensor-Basic
Fig 4-17 Alarm Configuration-Sensor-Alarm Handling Fig 4-18 Alarm Handling-Trigger
Step 6: Enter into alarm tab to select the options to handle alarm.
Buzzer: If selected, the local inbuilt buzzer would be activated on an alarm.
Full screen alarm: If selected, there will pop up the chosen channel on the monitor on an alarm trigger.
To alarm out: If selected, this would trigger the external relay output on detecting a sensor based alarm.
