DVR User Manual

or domain name.
Step 4: IE will download ActiveX automatically. Then a window pops up and asks for user name and password. Input name and password
correctly, and enter to view.

Note: If you cannot download and install ActiveX, please refer to FAQ Q8.

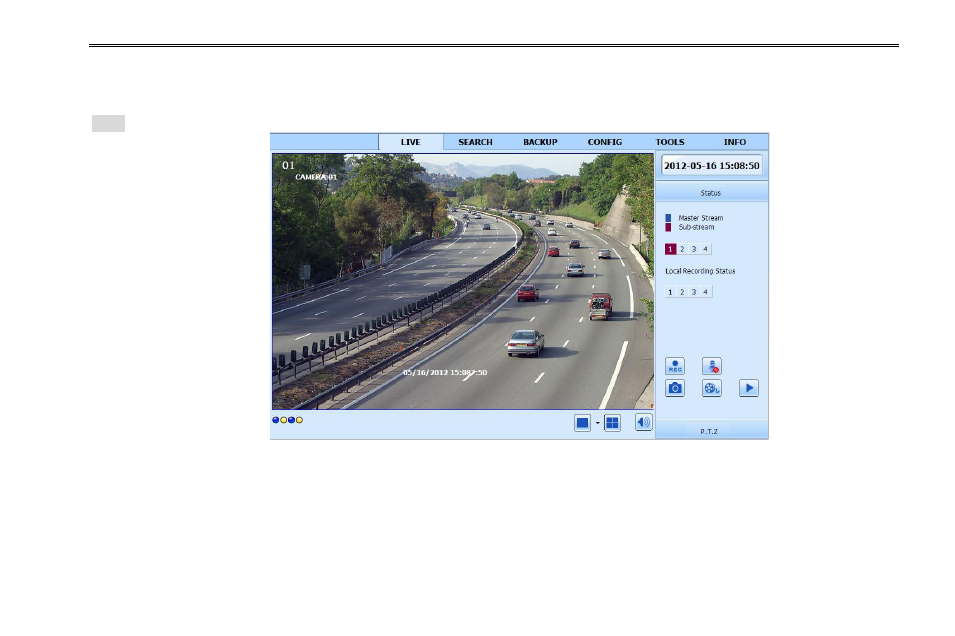

Fig 7-1 View with IE Browser

2. Connect the DVR to internet through PPPoE directly.
Step 1: Enter into the DVR‟s Main MenuSetupNetwork interface to enable PPPoE and then input user name and password received
from your ISP. Next, click „Apply‟. The DVR will connect to the server and would give a confirmation message.
Step 2: When accessing the remote interface of DVR, user can input WAN IP to access directly (user can enter into Main
menuInformationNetwork interface to check IP address).
