DVR User Manual
39

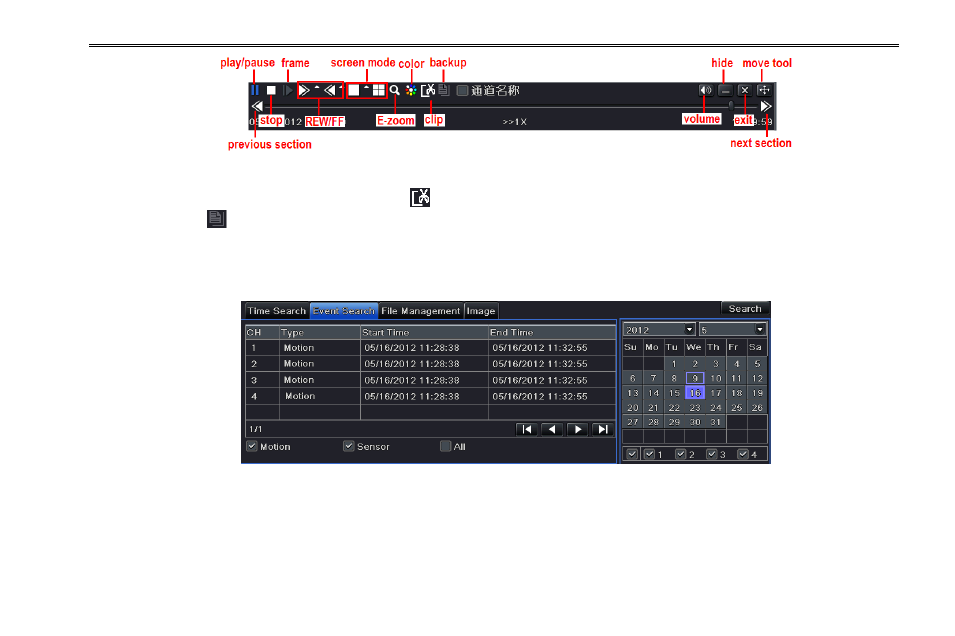

Playback Buttons
The method of record backup during a certain period in the playback interface:
Select the start time by dragging the slider and click icon. Then select the end time and click this icon again to confirm the record
period. Next, click icon to backup the record during this period.
5.2 Event Search
Step1: Enter into MenuSearchEvent Search tab. Refer to Fig 5-2:
Fig 5-2 Search Configuration-Event Search
Step 2: Select date and channels on the right hand side. A data with highlighted borderline indicates presence of data.
Step 3: Then checkmark Motion, Sensor or All accordingly. You can search for motion based recording and sensor based recording.
Step 4: Press “Search” button to display the searched event information in the event list box.
Step 5: Double click the event item to play the record.
