DVR User Manual
16
Max Online Users: To set the maximum number of concurrent user logins in the DVR.
Show wizard: If selected, the GUI would launch the startup wizard on every boot, allowing the user to do basic setup.
Video output: The resolution of live display interface, ranges from: CVBS,VGA800*600, VGA1024*768, VGA1280*1024 and HDMI.
Note
：
Switching between HDMI/VGA and CVBS will change the menu output mode. Please connect to relevant monitor.
Language: To setup the menu language.
Note: After changing the language and video output, the device needs to login again.
Logout After (Minutes): You can setup the screen interval time (30s, 60s, 180s, 300s). If
there is no any operation within the setting period, the device will auto logout and return to
the login interface.
No Image When Logout: If selected, there will be no image showing when logout.
4.1.2 Date & Time

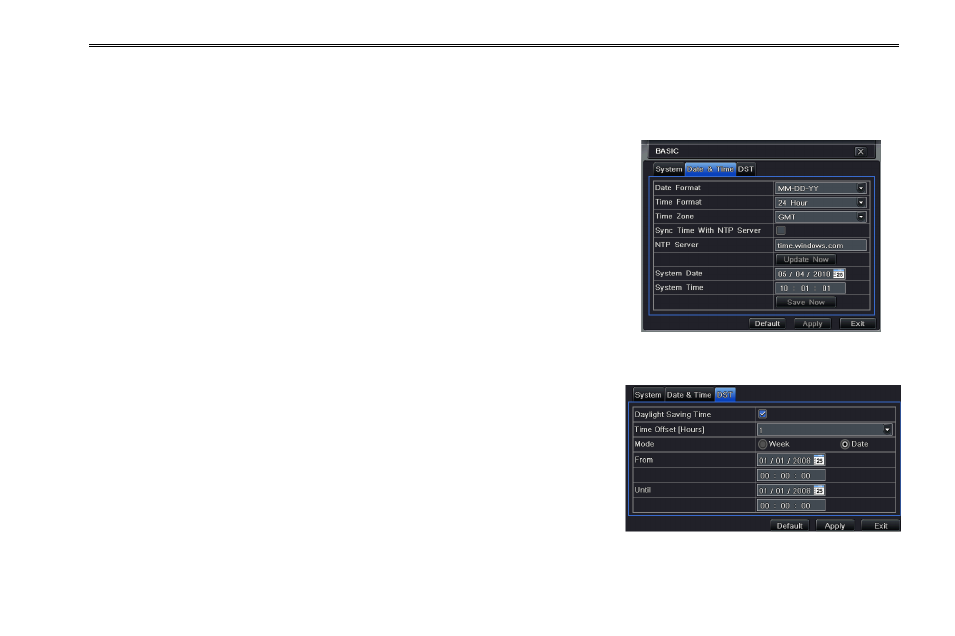

Step1: Enter into MenuSetupBasicDate & Time tab. Refer to Fig 4-4:
Step2: Set the date format, time format, time zone in this interface; checkmark “sync time
with NTP server” to refresh NTP server date; user can also adjust system date manually. Fig 4-4 Basic Configuration-Date &Time
Step3: Click “default” button to restore default setting; click “apply” button to save the setting; click “exit” button to exit current interface.
4.1.3 DST
Step1: Enter into MenuSetupBasicDST tab. Refer to Fig 4-5:
Step2: In this interface, enable daylight saving time, time offset, mode, start & end
month/week/date, etc.
Step3: Click “default” button to restore default setting; click “apply” button to save the
setting; click “exit” button to exit current interface.
Fig 4-5 Basic Configuration-DST
