2. This device is only for backup.
Step1: Unscrew and Open the top cover.
Step2: Connect the power and data cables. Place the DVD writer onto the bottom case as Fig2.3.
Step3: Screw the DVD writer as Fig2.4.

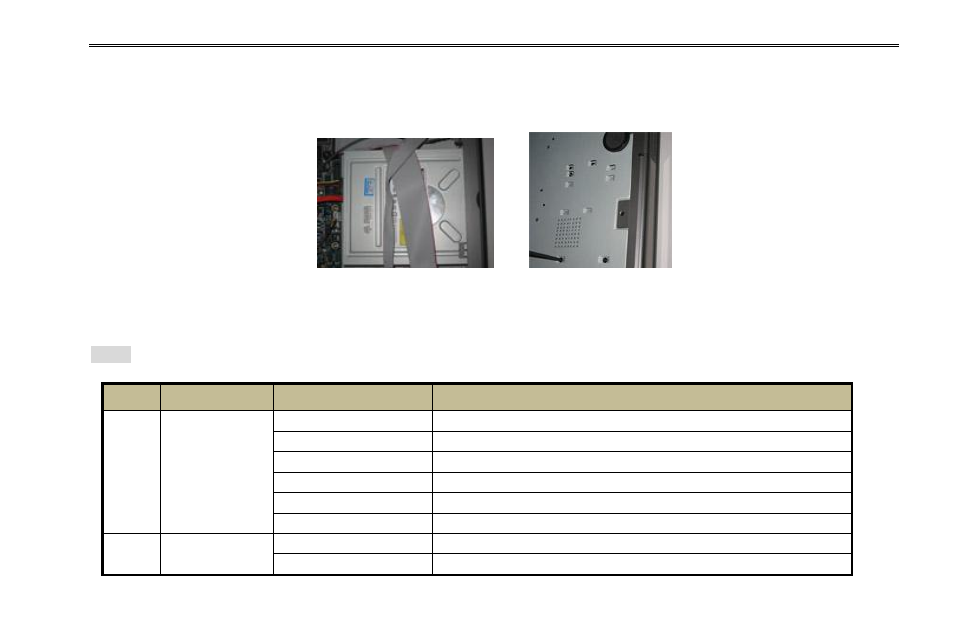

Fig 2.3 Connect the DVD Writer Fig 2.4 Screw the Writer
2.2
Front Panel Descriptions
Notice: The front panel descriptions are only for reference; please make the object as the standard.
Item
Type
Name
Description
1
Work state
indicator
Power
Power Indicator, when connected, the light is blue.
HDD
The light turns blue when reading/writing HDD.
Net
The light turns blue when it is able to access the network.
Backup
The light turns blue when backing up files and data.
Play
The light turns blue when playing video.
REC
The light turns blue when recording
2
MENU/+
1. Enter menu in live 2. Increase the value in setup
BACKUP/-
1. Decrease the value in setup 2. Enter backup mode in live
