4-CH DVR Quick Start Guide
4
up.


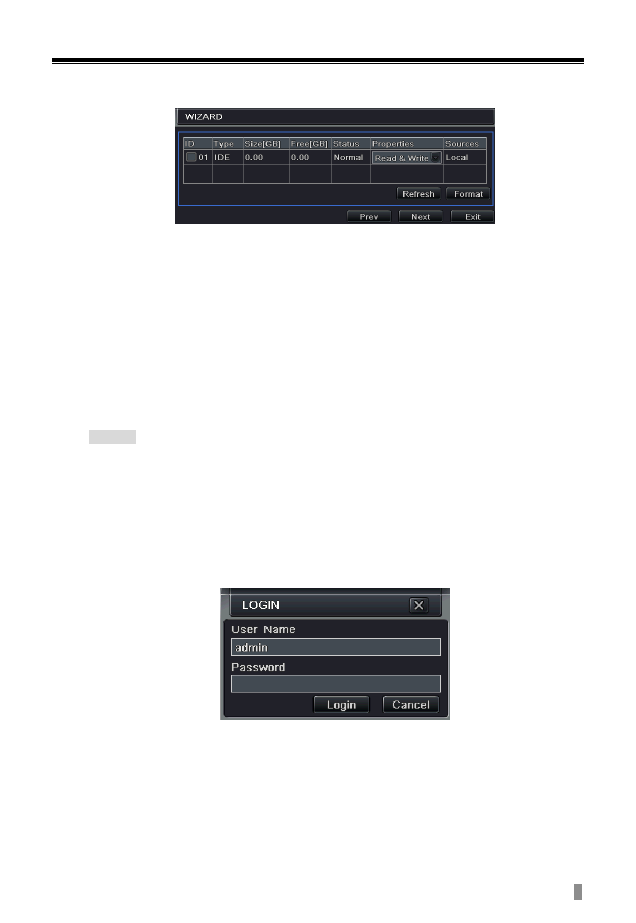

Click „Next‟ button. This will take you to the HDD management window.
You can check your HDD information through this tab. If your HDD was
recently installed, select the HDD from the list to format it.

Click „Next‟ button. This will let you to see your DVR status. And then
Click „Finish‟ button to end this wizard.
You can also refer to the complete setup steps from the relevant sections of
DVR User Manual. If you don‟t want to setup Wizard, please click Exit button to
exit.
5. Login
After you exit the wizard setup, you can login to the DVR.
Notice: This DVR can only display options on either VGA/HDMI monitor or CVBS
monitor at a given point of time, if there is live image display without menu
options，please check if there is display on other device/monitor, or long press
ESC/Stop key to wait for login dialog box to appear. Long press ESC/Stop key can
switch the output between CVBS and VGA/HDMI.
Press the MENU button which will bring the LOGIN dialogue box and enter the
user name: admin and password: 123456
Fig 4-1 Login
6. Main menu setup
Click right mouse, or press ENTER button on the front panel to enter into the
main menu. Then click Setup to enter into Setup interface as shown in Fig 4-2.
