-2-
1 .0 I N T RODU CT I ON
Photo of complete kit if available
The TD-1-TE Tension Indicator accurately displays tension values calibrated
in any unit of measure on a bright LED display, designed for flush panel
mounting.
1.1 Complete Kit
• TD-1-TE
• Sensor (as ordered)
• Sensor connecting cable (standard length or as ordered)
• Operating instructions
-15-
8 .0 T ECH N I CAL I N FORM AT I ON

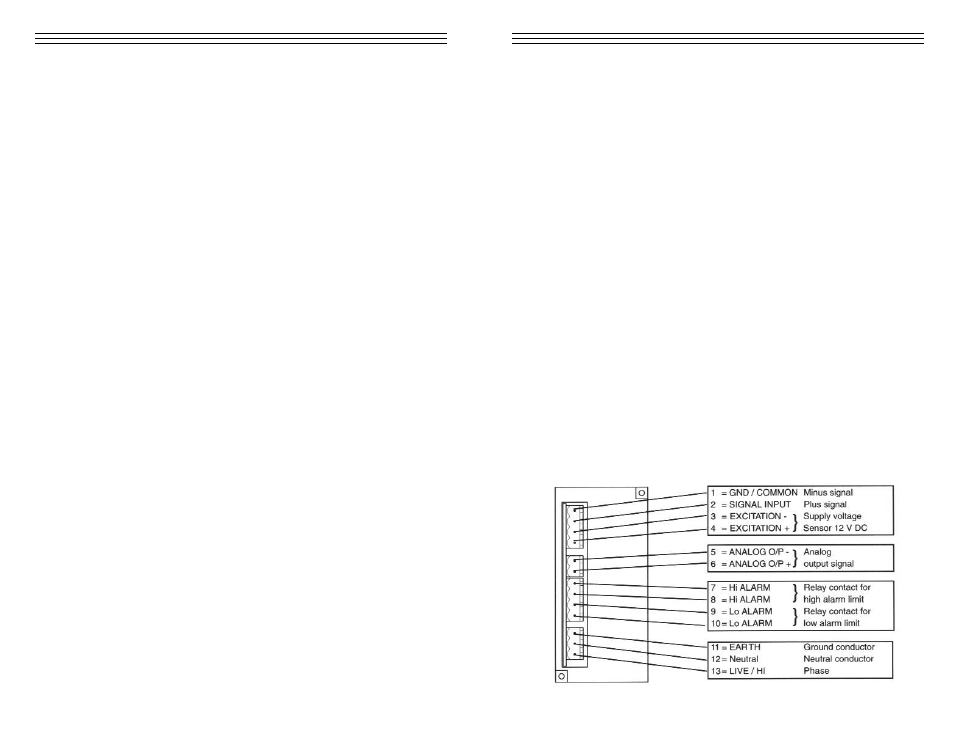

8.2 Pin assignments of connectors
8.1 TD-1-TE Specifications
Digital display 3.5-digit, 7 segment display, height 14.4mm
(with tension range setting
Tension units cN or daN (depending on sensor)
Damping (fg) 1 Hz or 40 Hz (selectable)
Output signal 0–10 VDC / RLEAD ≥ 1K Ohm
Output voltage +12 VDC (115 VAC)
(sensor)
Power supply 115 VAC
Current Consumption 0.35 A (0.7A)
Relay output 1A / 230 VAC / 30 VDC break contact
Temperature range 1-–45 °C
Air humidity 85% RH, max
Housing Plastic
Dimensions 96 (L) x 48 (W) x 103 (H) mm
Panel cutout 96 (W) x 48 (H) mm
Weight (approx.) 400 g (net) 1000 g (gross)
