BÜCHI Labortechnik AG Installation | 5
Ultrasonic Controller 25/46
5 Installation
5.1 Unpacking
1. Unpack the device.
2. Check the device for any damages caused by the transportation.
• Report damages immediately to the responsible transportation company.
3. Check for completeness of the product according to the scope of delivery.
4. Keep the original packaging for future transportation.
5.2 Ultrasonic controller with nozzle, installation

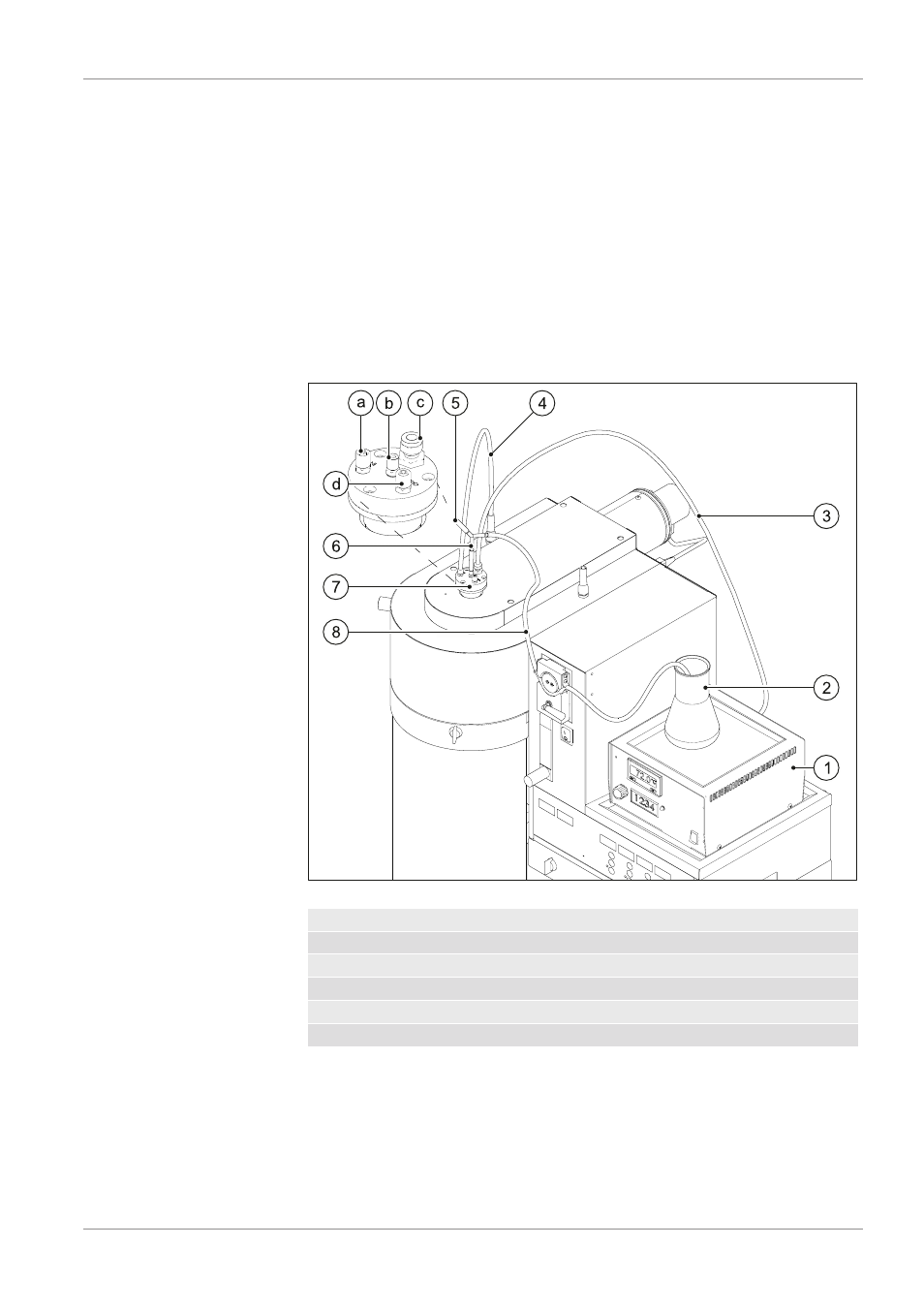

Fig. 10: Installation of Ultrasonic controller and nozzle
1 Ultrasonic controller 2 Feed solution
3 Ultrasonic cable 4 Compressed spray gas
5 Pulsation damper 6 Y­piece
7 Ultrasonic nozzle 8 Feed tube
a Compressed cooling gas “In” b Connector for Feed tube
c Connector for ultrasonic cable d Compressed cooling gas “Out”
1. Insert the nozzle (7) completely into the heater element on top of the
B­290.
2. Place the Ultrasonic Controller (1) on the product feed table of the B­290.
3. Connect the power cord to the Ultrasonic Controller.
• Use a plug­in location which allows to disconnect the device at any time.
4. Attach the nozzle using the ultrasonic cable (3) to the connector on the
rear side of the controller.
