ALFA NETWORK AIP-W525H - Manual (Page 53)

AIP-W525H
- 48 -
1. Check the Enable DMZ checkbox.
2. Enter the IP Address of a local host in the DMZ Host IP Address field.
3. Click the Apply Changes button.

Note:
After you set the DMZ host, the firewall related to the host will not work.
4.7.7 VLAN
Choose menu “Firewall → VLAN”, if you want to configure the Guest and Internal networks on
VLAN, the switch you are using must support VLAN. As a prerequisite step, configure a port on the
switch for handling VLAN tagged packets as described in the IEEE802.1Q standard, and enable
this field as shown in Figure 4-33.

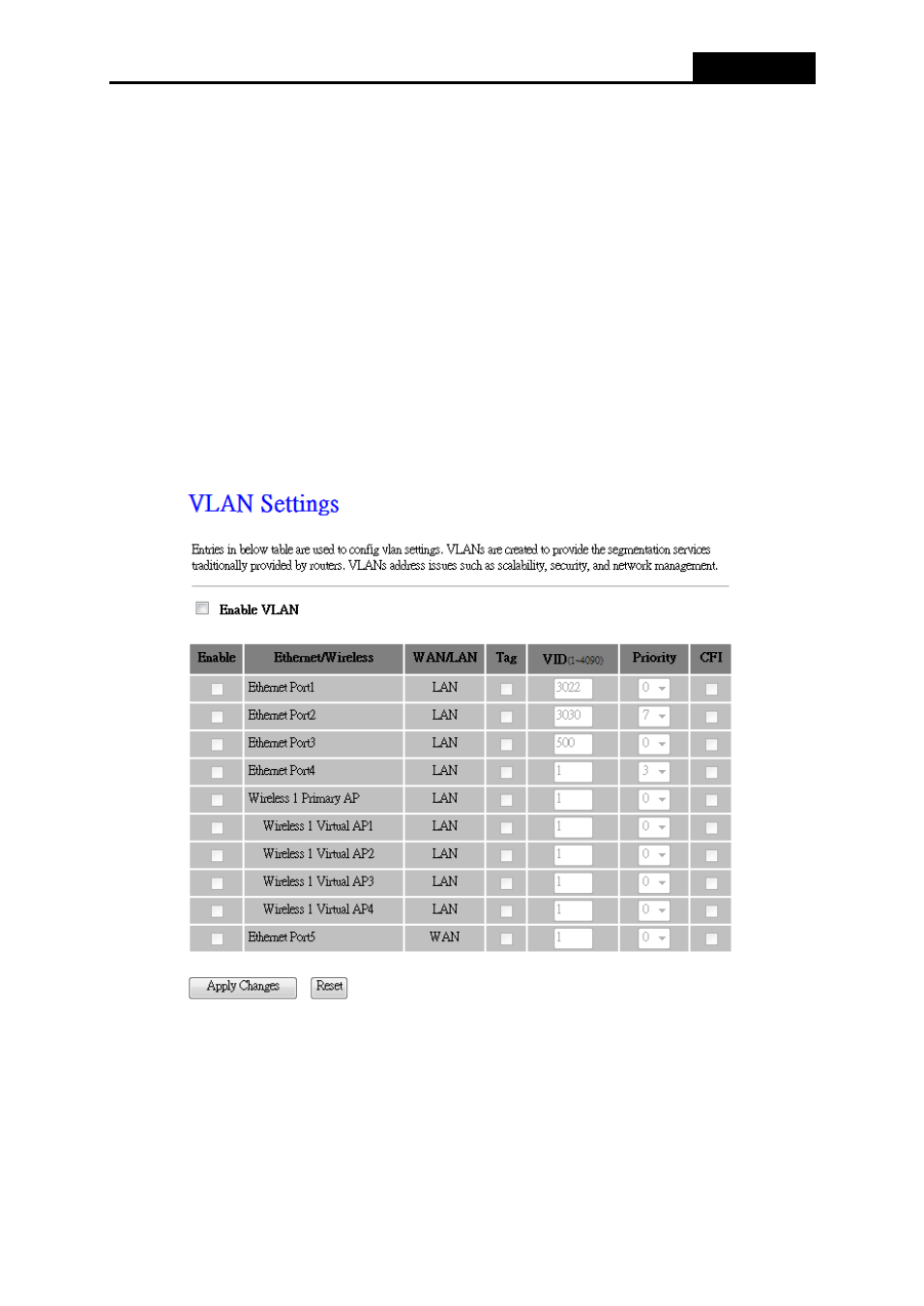

Figure 4-33 VLAN
 Be sure to click the Apply Changes button to save your settings on this page.
