AIP-W525H
- 22 -
4.5.2 WAN Interface
Choose menu “TCP/IP Settings → WAN”, you can configure the IP parameters of the WAN on
the screen shown below.

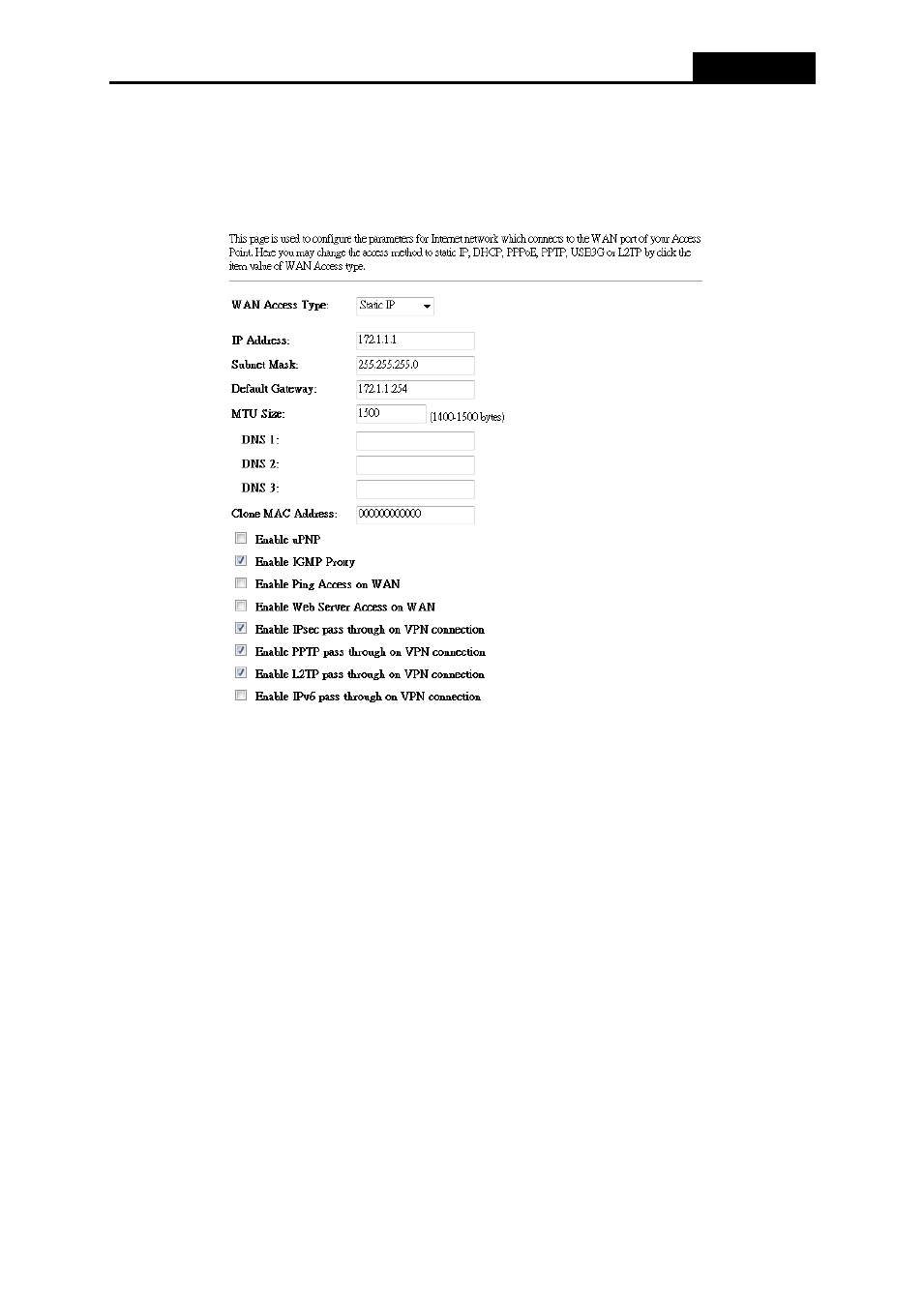

Figure 4-7 WAN – Static IP
 Clone MAC Address - Fill in the MAC address for the MAC address to be cloned
 Enable uPNP - Click the checkbox to enable uPNP function.
 Enable IGMP Proxy - Click the checkbox to enable IGMP proxy
 Enable Ping Access on WAN - Click the checkbox to enable WAN IGMP response.
 Enable Web server Access on WAN - Click the checkbox to enable web configuration from
 Enable IPsec pass through on VPN connection - Click the checkbox to enable IPSec
packet pass through
 Enable PPTP pass through on VPN connection - Click the checkbox to enable PPTP
packet pass through
 Enable L2TP pass through on VPN connection - Click the checkbox to enable L2TP packet
pass through
