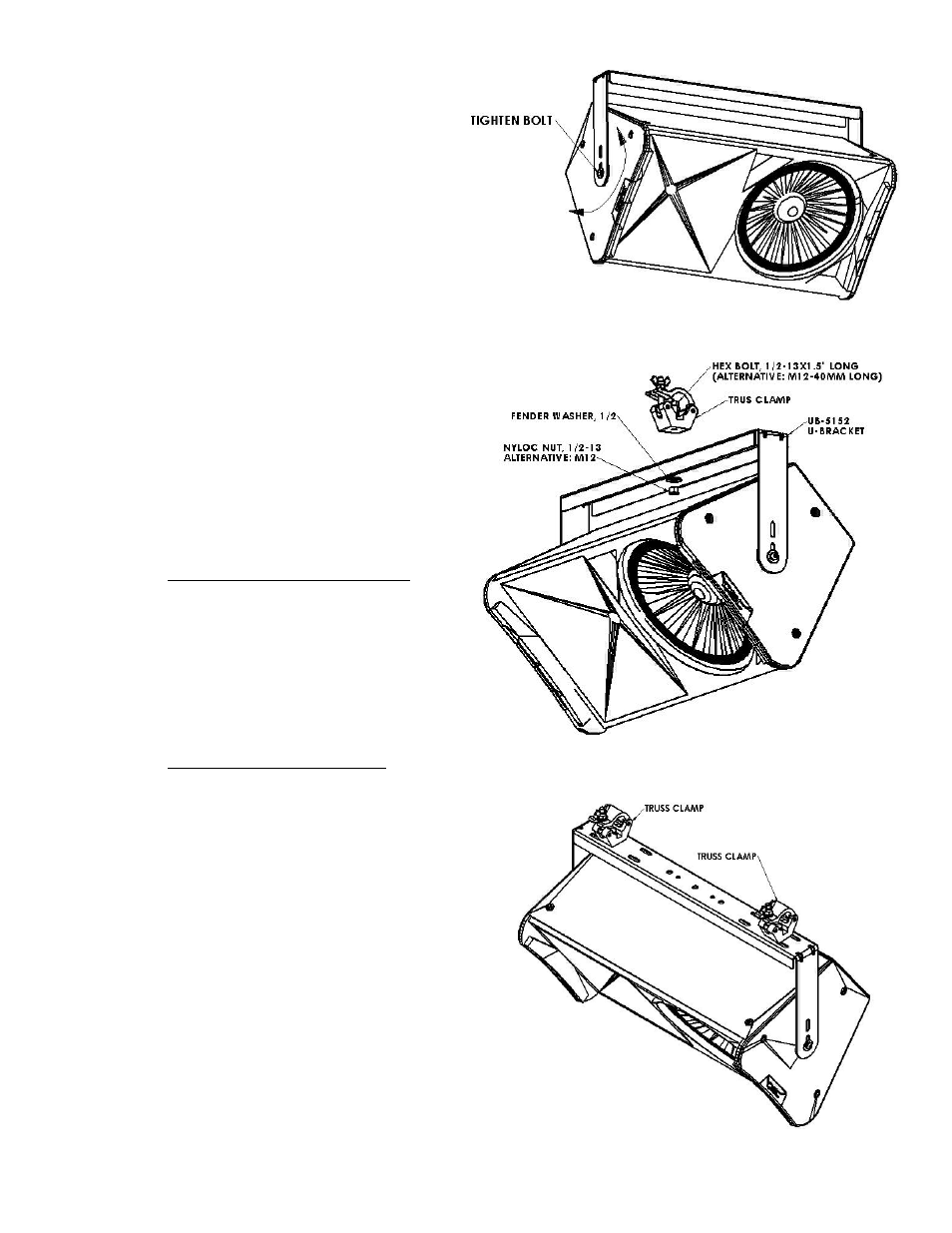

Figure 2
Figure 3
Figure 4
Step 2: Select the mounting area where the
loudspeaker will be installed. Attach
the U-Bracket to the wall or ceiling
using the holes on the base of the U-
Bracket. Use the appropriate hardware
for the application (if in doubt, consult
a local hardware specialist). Tighten
permanently.
Step 3: Place the speaker between the U-
Bracket’s arms. Insert the M10 Button
head bolt, flat washer and split lock
washer (must match the speaker’s
thread) through the hole in the arms
with the sound isolation gasket in
between the speaker and the bracket.
Thread the bolt into the loudspeaker.
Repeat on the other side of the
speaker (Figure 1). Do not fully
tighten yet.
Step 4: Rotate the loudspeaker into the
desired direction then tighten the side
bolts permanently (Figure 2).
Step 5: Truss Clamp Application:
For a single truss clamp application,
attach the truss clamp on the center
hole of the U-bracket’s base using a
½-13x1.5” long hex bolt, ½ fender
washer and a ½-13 nylock nut (M12
hex bolt, M12 fender washer and M12
nylock nut can also be used). Position
the desire direction of the loudspeaker
then tigthen nut (figure 3).
For dual truss clamp application,
attach the truss clamp on the two holes of
the u-brackets base close to the bend. Use
½-13x1.5” long hex bolt, flat washer and
nylock nut (M12 bolt, fender washer and
nyloc nut can also be used) (Figure 4).
Step 6: Recommendation: Safety Cable
Install a safety cable to the U-Bracket and
to the structurally load rated mounting
surface.
