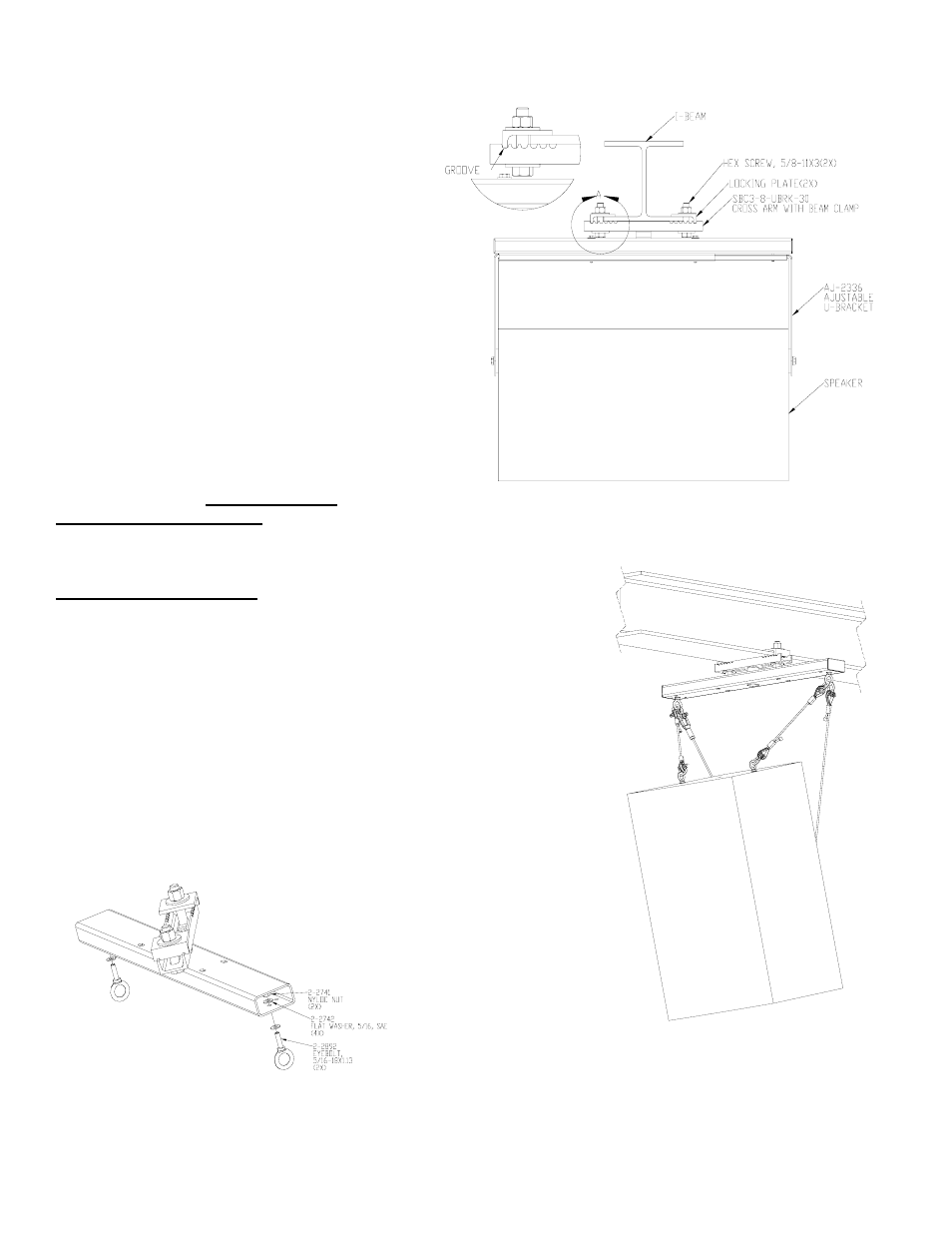

Step 3.

Attached the swivel beam assembly to the

attachment I-beam. Adjust the Locking plate

so that the bolts of the locking plates are a

close or touching to the sides of the I-beam.

Make sure that the locking plate is also secure

and resting on the grooves of the channel.

Make sure the beam clamps channel is

centered to the attachment I-beam. Clamp

the locking plates tightly to the beam both

vertically and horizontally with the 5/8” bolts,

washers and nuts. Add loctite thread

compound to the threads of the bolts over the

nut (Figure 3).

Step 4.

Put on the two end caps for the cross arm

(Figure 2).

Step 5.

Attach the speaker to the AJ-2336 adjustable

u-bracket with the hardware kit that comes

with it. Adjust the tilt angle and tighten the

screws on the sides. Refer to AJ-2336

product instruction sheet.

For Suspending speakers:

Step 1.

To Suspend a speaker to the cross arm, install the eyebolts to the center

holes of the cross arm close to the edge. Use load rated hardware to

suspend the speaker (Figure 4 and 5).

Step 2.

Install the hole plug to the center hole on the bottom of the tube.

Step 3.

Repeat step 3 and 4 to attach the Swivel beam clamp to the I-Beam.

Figure 3

Figure 4

Figure 5
