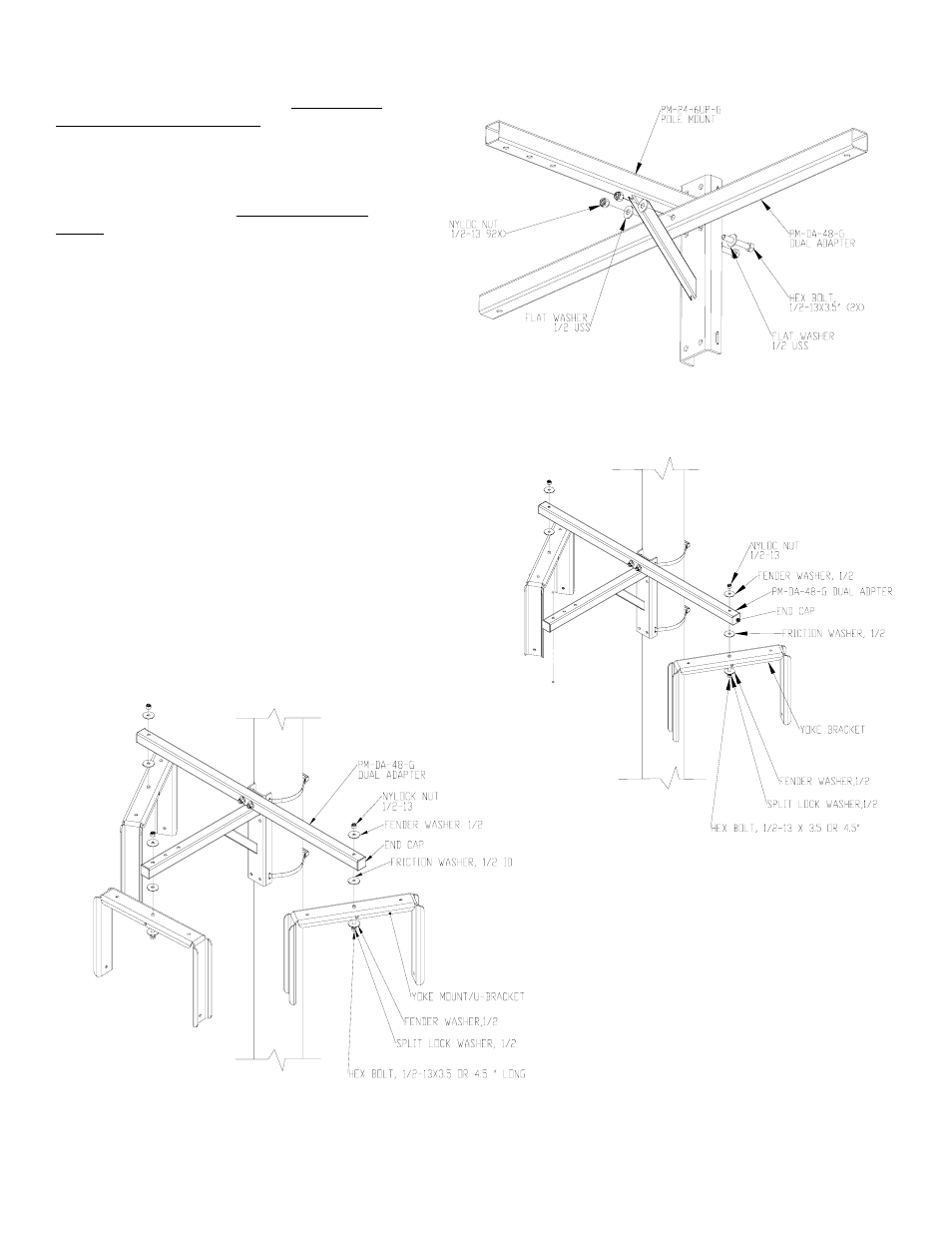

Figure 3
Figure 4
Figure 2
Step 3:
Attach pole mount and dual adapter assembly to the pole or
column using the selected banding strap. See PM-BAND-
30, 60, 90 installation instructions.
Step 4: Attach Mounts
Attach mounts (yoke mount, U-brackets, etc) to the ends of
the dual adapter using the included bolts, split lock washer,
fender washers, nylock nut and rubber friction gasket in
between the yoke bracket and the dual adapter. Check final
angle then tighten bolts permanently (Figure 3 for dual
mount and figure 4 for triple mount application).
Step 5:
Attach speakers to U-Brackets/ yoke mounts. Refer to U-
bracket or yoke mounts installation instructions (See main
illustration).
Step 6: Install End Caps
After installation, cover the end of the dual adapter with the
end caps. Trim end caps if necessary to clear bolts head
and washers (Figure 3 and 4).
Step 7: Install Safety Cable
Secure a safety cable to the pole or column, and then attach the other
end of the safety cable to the speaker to bypass the mounting system.
