Adaptive Technologies PM-DA-48 User Manual

Page 2

REV02-042710

Figure 5

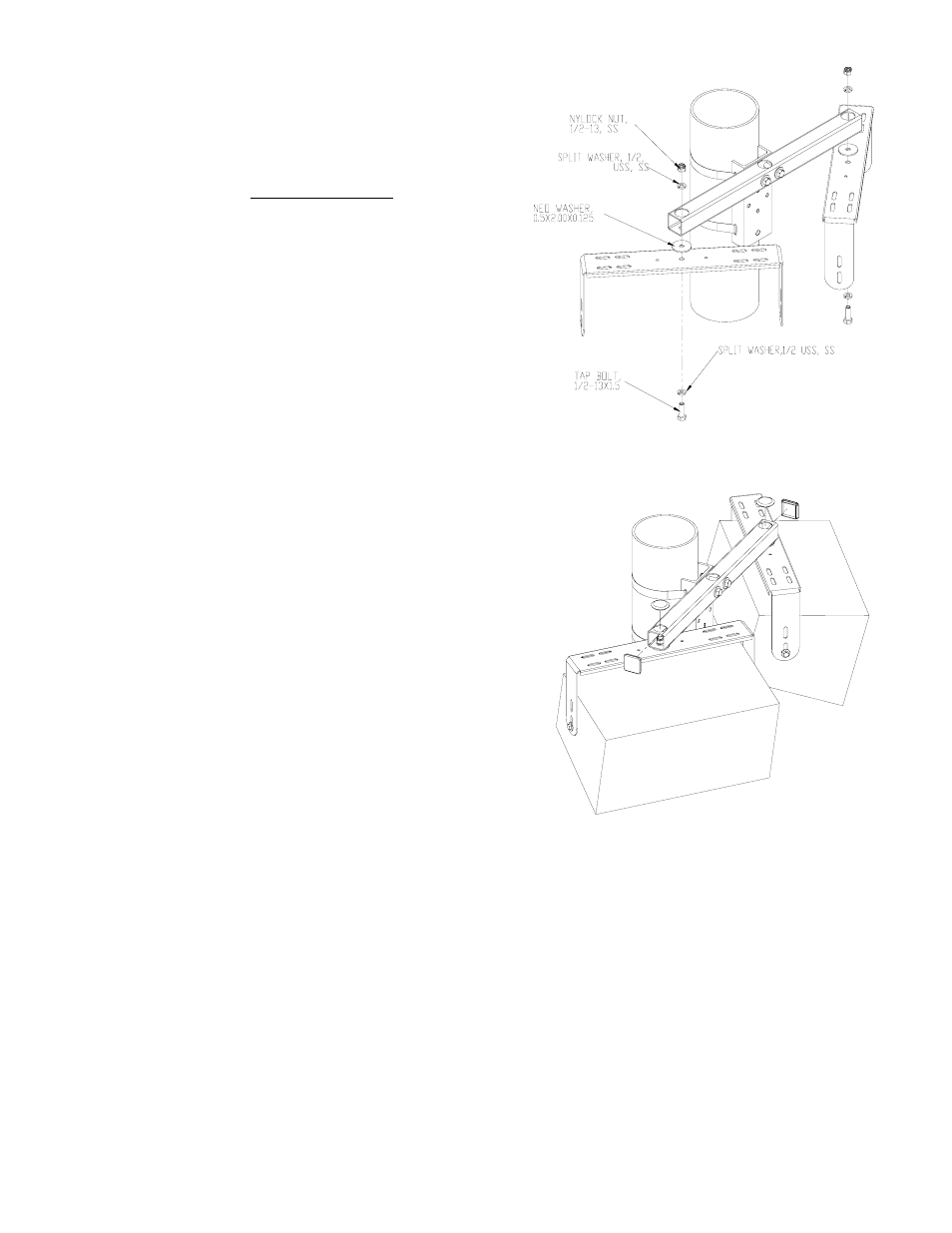

Option C: Assemble Dual Adapter directly to Pole Adapter (Figure 3)
Attach the Dual Adapter directly to the pole adapter using the included 3” long
bolts, washers and nuts. Be sure the large holes are facing up. Check final
horizontal angle then tighten permanently.

Step 2. Attach Mounts
Attach mounts to the ends of the dual adapter using the included bolts, split
lock washers and nylock nuts and rubber gasket in between the yoke bracket
and the dual adapter. Check final angle then tighten bolts permanently (Figure
4).

Step 3. Install End Caps and Plugs
After installation, cover the end of the dual adapter with the end caps and the
round holes with the round plugs. Trim end caps if necessary to clear bolts
head and washers (Figure 5).

Step 4. Install Safety Cable
Secure a safety cable to the pole or column, and then attach the other end of
the safety cable to the speaker to bypass the mounting system.

Figure. 4

This manual is related to the following products:

PM-DA
