Adaptive Technologies PM-AWC-G - Manual (Page 2)

© 2012 Allen Products Company, Signal Hill, CA 90755 USA (562) 424-1100 REV00-091812

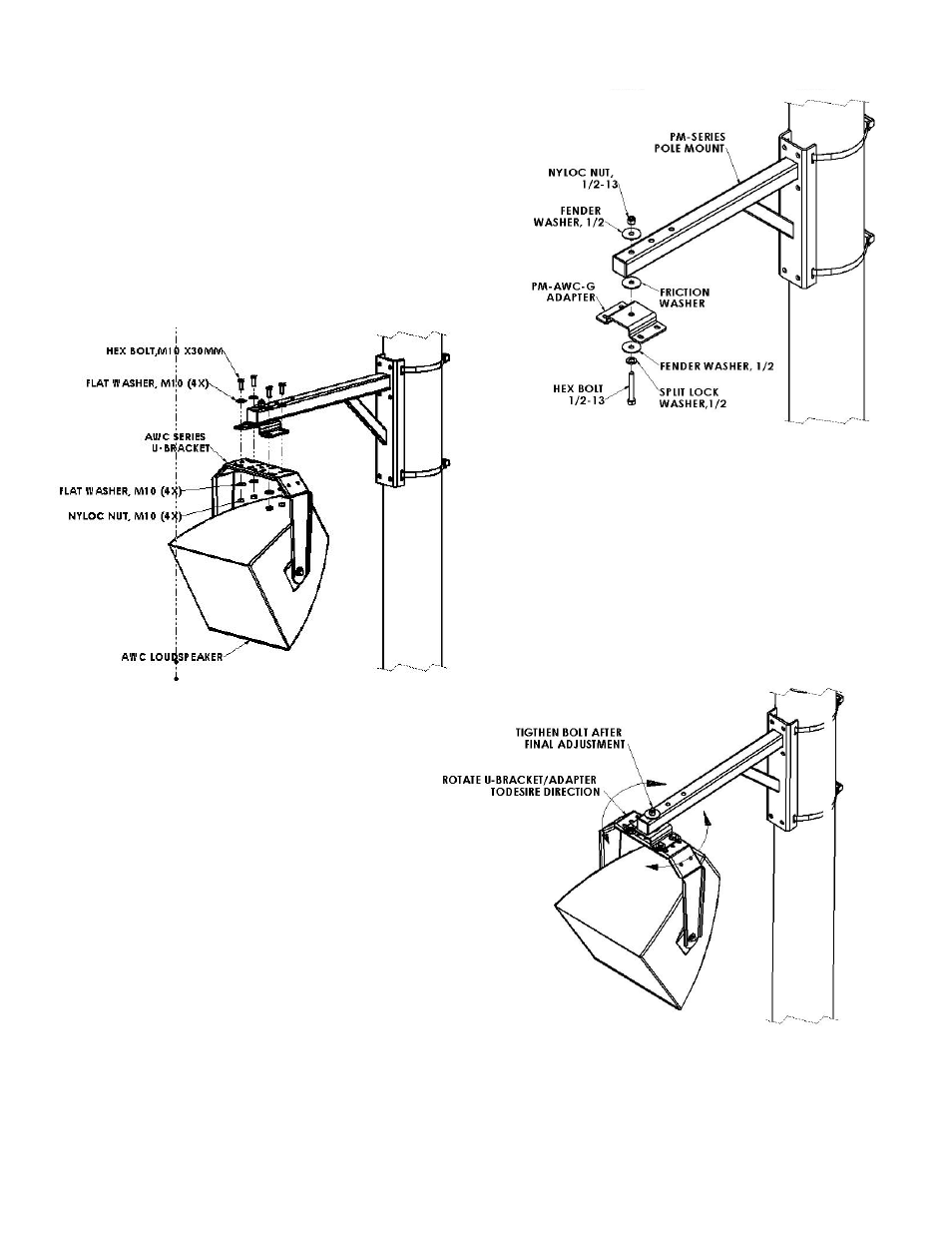

Figure 1
Figure 2
Step 4:
Rotate and position the U-bracket /loudspeaker assembly horizontally to
desired direction then tighten the bolt securing the adapter to the pole mount
using a flat wrench to access the head of the bolt below the adapter (Figure
3).
Step 5:
Adjust tilt angle of the loudspeaker per manufacturer’s installation instructions.
Figure 3
