© 2012 Allen Products Company, Signal Hill, CA 90755 USA (562) 424-1100 REV00-091812

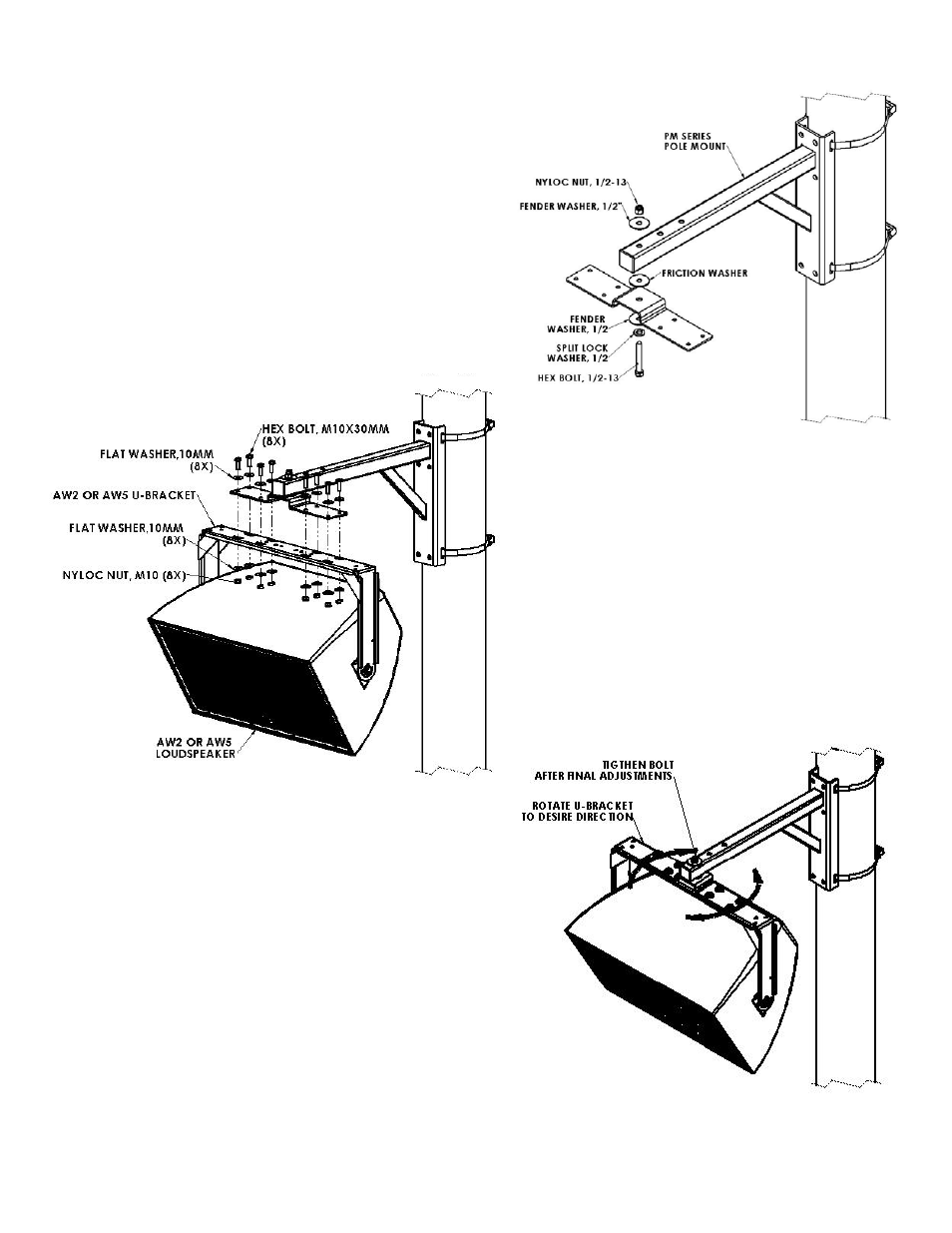

Figure 1 (Shown for single mounted loudspeaker)

Figure 3

Step 4:
Rotate and position the U-bracket /loudspeaker assembly to the desired
direction then tighten the bolt securing the adapter to the pole mount using
a flat wrench to access the head of the bolt below the adapter (Figure 3).

Step 5:
Tilt loudspeaker per manufacturer’s installation instructions.





Figure 2
