© 2004 Allen Products Co., Inc. Signal Hill, CA 90755

(562) 424-1100 Rev. 01-101408

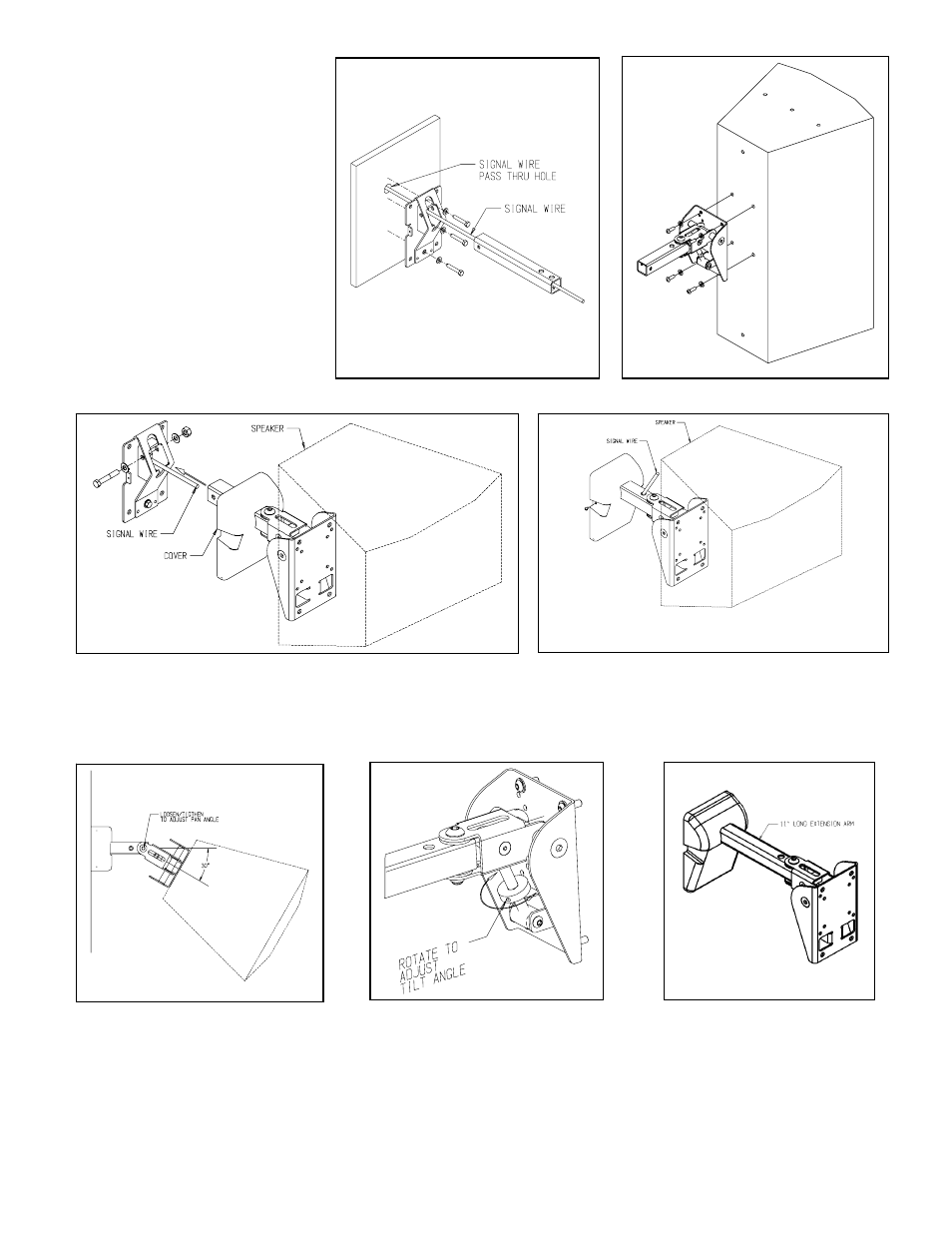

Step 3:
Lift object with the mount attached up to the
wall mounting plate and insert the support
arm into the opening of the wall mounting
plate (Figure 5). Line up the support arm’s
hole with the wall mounting plate’s hole and
insert the 3/8” x 2 1/2” tap bolt. Permanently
secure with 3/8” flat washer and nut
(Figure 7 and 8).


Step 4: Setting the pan angle
Rotate the speaker or video display horizontally, right or left, until it is aimed in the desired direction. Permanently tighten the socket head screw
at the support arm with a 5/16” hex wrench (Figure 9).

Step 5. Setting the tilt angle
While supporting the weight of the speaker, rotate the tilt control knob until the desired tilt angle is achieved (Figure 10). Caution;

DO NOT

ATTEMPT TO ADJUST THE SPEAKER OR VIDEO DISPLAY UPWARD, ABOVE THE HORIZONTAL POSITION.
Step 6. Recommendation: Install Safety Cable

Attach a safety cable (sold separately) to the mounting surface

(Must be able to support at least five times the weight of the speaker),

then attach

the other end of the safety cable to the speaker. If no attachment is provided on speaker, consult speaker manufacturer for advice on best
attachment point and method.

Figure 5

Figure

7

Figure

8

Figure 9

Figure 10

Figure 11

Figure 6

Top View
