Adaptive Technologies MM-022-BT User Manual

Page 2

111/27/00

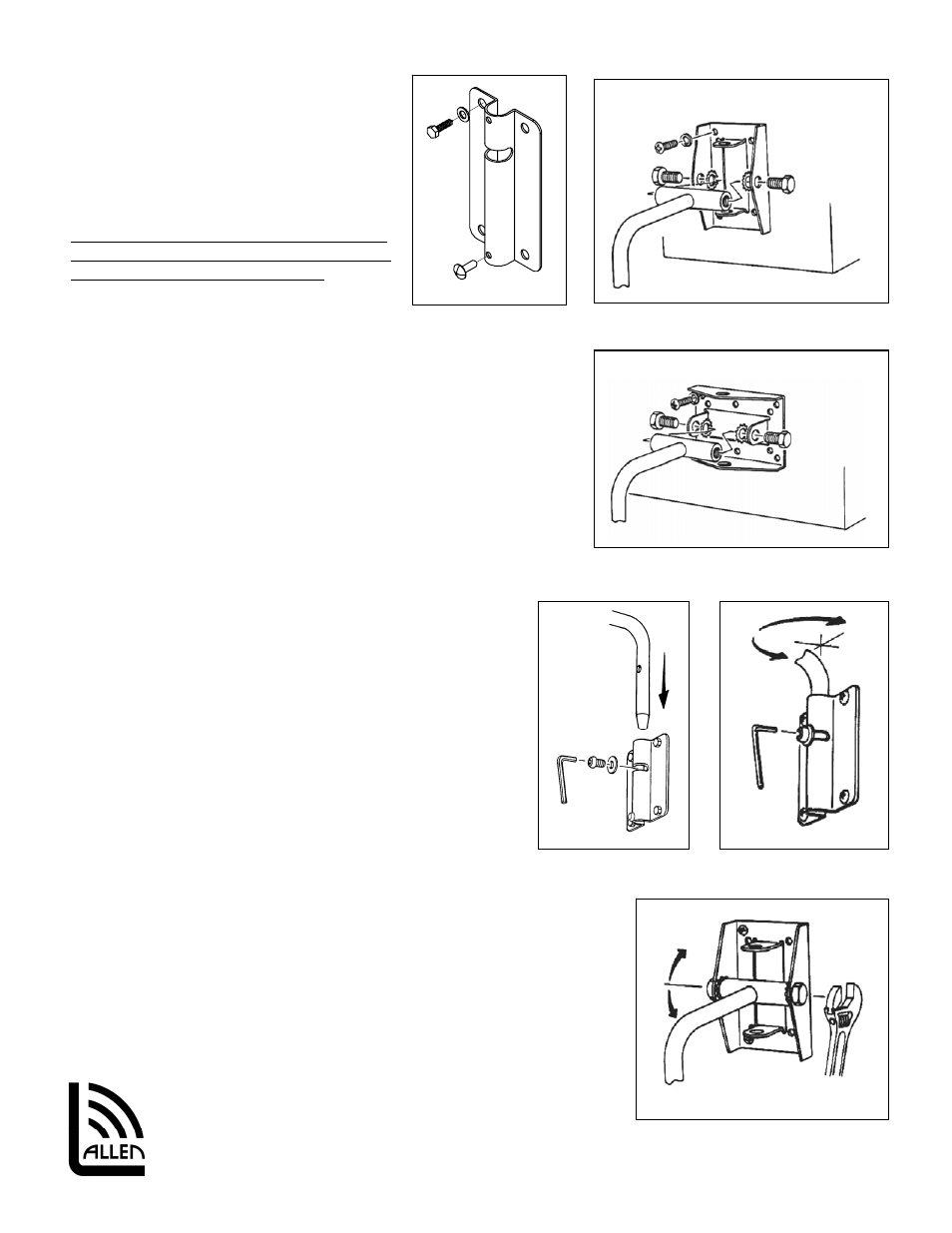

Figure 1

Figure 2A

Figure 2B

Figure 3

Figure 4

Figure 5

Step 3.

Assemble support arm to adapter plate by

bolting the pivot rod inside the flanges of the

speaker adapter plate with the star washer in

between the flange and the pivot rod. The

rounded surfaces of the star washer’s teeth

must seat against the pivot rod.

Important:

The sharp edges of the star washer must face

the inside surface of the speaker adapter plate

flanges to achieve proper tilt locking.

Step 4.

Thread the 3/4”-16 hex bolt through the side

holes of the adapter plate’s flanges and into the pivot rod. Position the

support arm perpendicular to the adapter plate then tighten securely but

not permanently. This will hold the speaker in position while mounting it

to the wall or ceiling.

Step 5.

Lift the speaker and support arm up to the mounting plate and insert the

support arm through end of the mounting plate with the cross slot

(Figure 3). Line up the support arm’s threaded hole with the cross slot.

Insert the 5/16” socket screw and a washer through the mounting plate’s

slot and into the threaded hole of the support arm (Figure 3). Tighten the

screw firmly but not permanently. Be sure the flat washer seats outside

the slot.

Step 6.

Setting the pan angle

Loosen the socket screw on the wall plate (do not remove).

Rotate the speaker horizontally right or left until the speaker is

aimed in the desired direction. Permanently tighten the socket

screw at the mounting plate with a 3/16” hex wrench (Figure 4).

Step 7.

Setting the tilt angle

While supporting the speaker’s weight, loosen the 3 /4-16 hex

bolts at the sides of the speaker adapter plate (do not remove).

Lift the speaker up to the desired tilt angle and hold it in position

while re-tightening the 3/4” hex bolts. Be sure that the screws

have been tightened permanently before releasing the weight of

the speaker (Figure 5).

If the tilt angle needs to be adjusted,

DO NOT PULL ON

SPEAKER

, rather repeat step 7

Step 5. Recommendation: Install Safety Cable
Attach a safety cable (sold separately) to the mounting surface

(Must be able to

support at least five times the weight of the speaker), then attach the other end

of the safety cable to the speaker. If no attachment is provided on speaker, consult
speaker manufacturer for advice on best attachment point and method.

Vertical Orientation

Horizontal Orientation
