Adaptive Technologies MM-008-CM User Manual

Page 2

(562) 424-1100

10/04-rev01

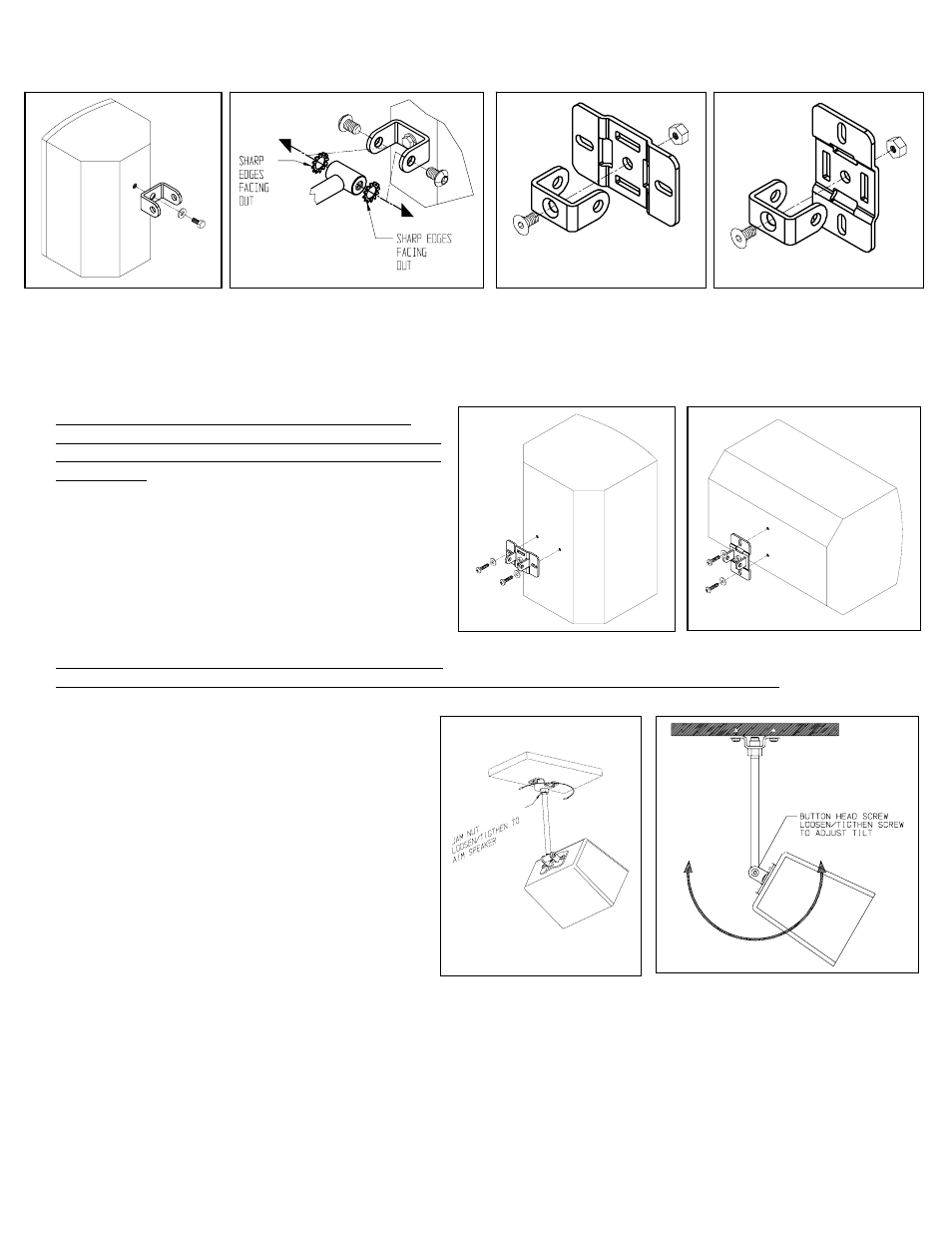

Figure 4A: Horizontal Installation Figure 4B: Vertical Installation

Figure 3A: U-Bracket Installation Figure 3B: Support Arm Installation

Figure 6

Figure 7

Step 3. Attach adapter plate to speaker:

For vertically oriented speaker installations see figure 5A. For horizontally oriented speakers see figure 5B.

If threaded

inserts and/or mounting screws are not included on the speaker, consult the speaker manufacturer for proper mounting

procedures.

Attach the speaker adapter plate to the appropriate

mounting holes of the speaker using the manufacturer’s

suggested screws and washers. Tighten these fasteners

permanently.

Step 4. Install Speaker to Ceiling Plate:

Lift the speaker and insert the support arm through the

mounting plates by bolting the support arm inside the

flanges of the U-bracket using the 5/16 button head

screws and star washers in between the flanges and the

support arm (Figure 3B).

Important:

The sharp edges of the star washer must face the

inside surface of the speaker adapter plate flanges to achieve proper tilt locking (Figure 3B).

Step 6. Setting the tilt angle:

While supporting the speaker’s weight, loosen the

button head screws at the sides of the speaker

adapter plate (do not remove). Position the speaker

to the desired tilt angle and hold in position, then re-

tighten the screws. Be sure that the screws have

been tightened permanently before releasing the

weight of the speaker (Figure 6).

If the tilt angle needs to be adjusted,

DO NOT PULL

SPEAKER

, rather repeat step 6.

Step 7. Setting the pan angle:

Rotate the speaker horizontally right or left until the

speaker is aimed in the desired direction.

Permanently tighten the ½” jam nut at the top of the

mounting plate with a ½” hex wrench (Figure 7).

Step 5. Recommendation: Install Safety Cable
Attach a safety cable (sold separately) to the mounting surface

(Must be able to support at least five times the weight of the

speaker), then attach the other end of the safety cable to the speaker. If no attachment is provided on speaker, consult speaker

manufacturer for advice on best attachment point and method.

Figure 5A

Figure 5B
