MAXX 2400 Owners Manual
Programming GPIO Inputs
The MAXX 2400 has six General Purpose Inputs, referred to as GPI 1 through GPI 6. Each GPI can
be programmed to trigger one of the following events on a channel.
CUE
Cue a clip
JUMP
Cue selected clip for immediate playback (Playlist Mode only)
NEXT
Prepare next clip in a playlist for playback (Playlist Mode only)
PAUSE
Pause a clip
PLAY
Play a clip
RECORD
Start a recording
SELPREV
In Playlist Mode – Navigate to clip above currently selected clip
SELNEXT
In Playlist Mode – Navigate to clip below currently selected clip
STOP
Stop a clip

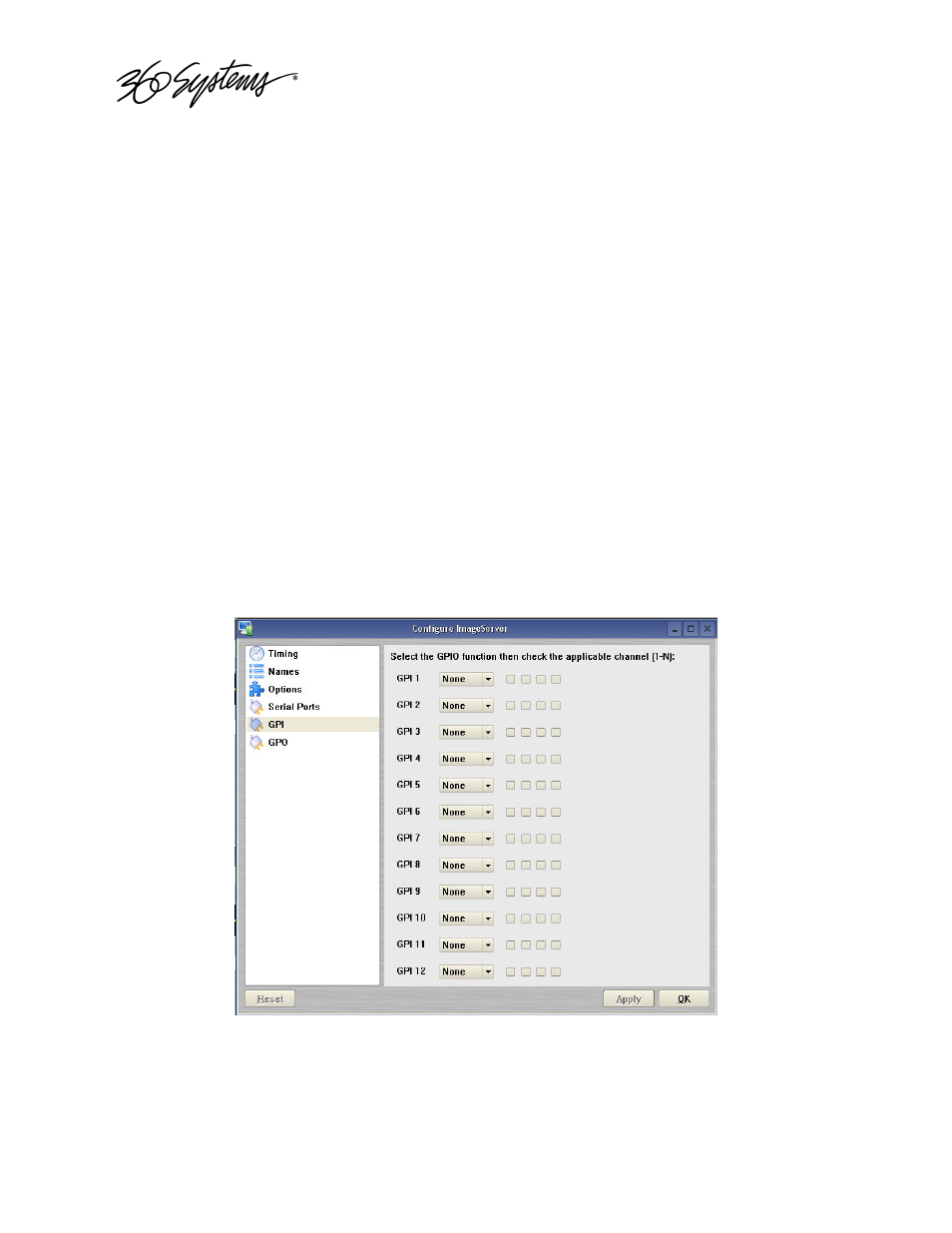

To program a GPIO Input, select EDIT->CONFIGURE->GPI. The screen of Figure 17 is
displayed. GPI 1 through 6 are the six programmable inputs. The checkboxes to the right of each
selection represent channel 1, 2, 3 and 4. GPI 5 is shown with the trigger option pulldown
expanded.
To activate one of the GPI, check the checkbox for the channels of interest, then pulldown the
event menu and select which event will be triggered when the GPI goes active. Click APPLY to
activate.
Figure 17 - GPI Configuration Screen
