MAXX 2400 Owners Manual Page 19
AUDIO MODULE ( AXP1 ) CONNECTIONS
The AXP1 Module is a 1RU Rack-mountable module that provides for connection of the audio
equipment. Connect The AXP1 Module to the AXP1 Expansion connector on the rear panel of
MAXX 2400 using the supplied 68 Pin SCSI cable. Figure 4 indicates the AXP1 module’s
connectors and their functions.
CAUTION!!
It is possible to plug the AXP1 Module into the CXP1 or AXP2 Module Connection. Damage to the
system may occur if power is applied with the AXP1 plugged into the wrong connector. The AXP1
connector on the MAXX 2400 is clearly marked. Connect the AXP1 per Figure 3. Be certain it is
properly connected before applying power to the system.

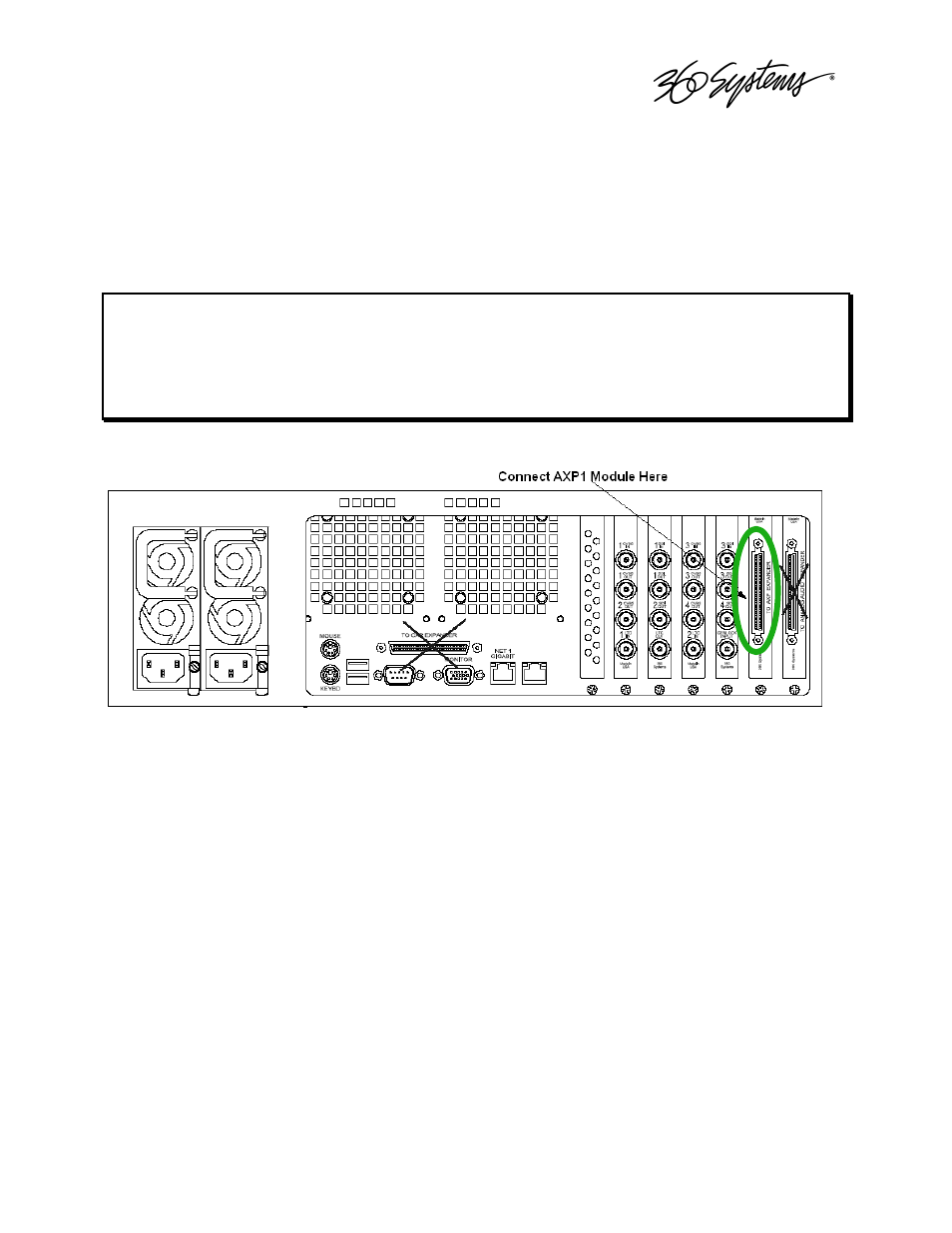

Figure 3 - AXP1 Connection to 2400 Chassis
