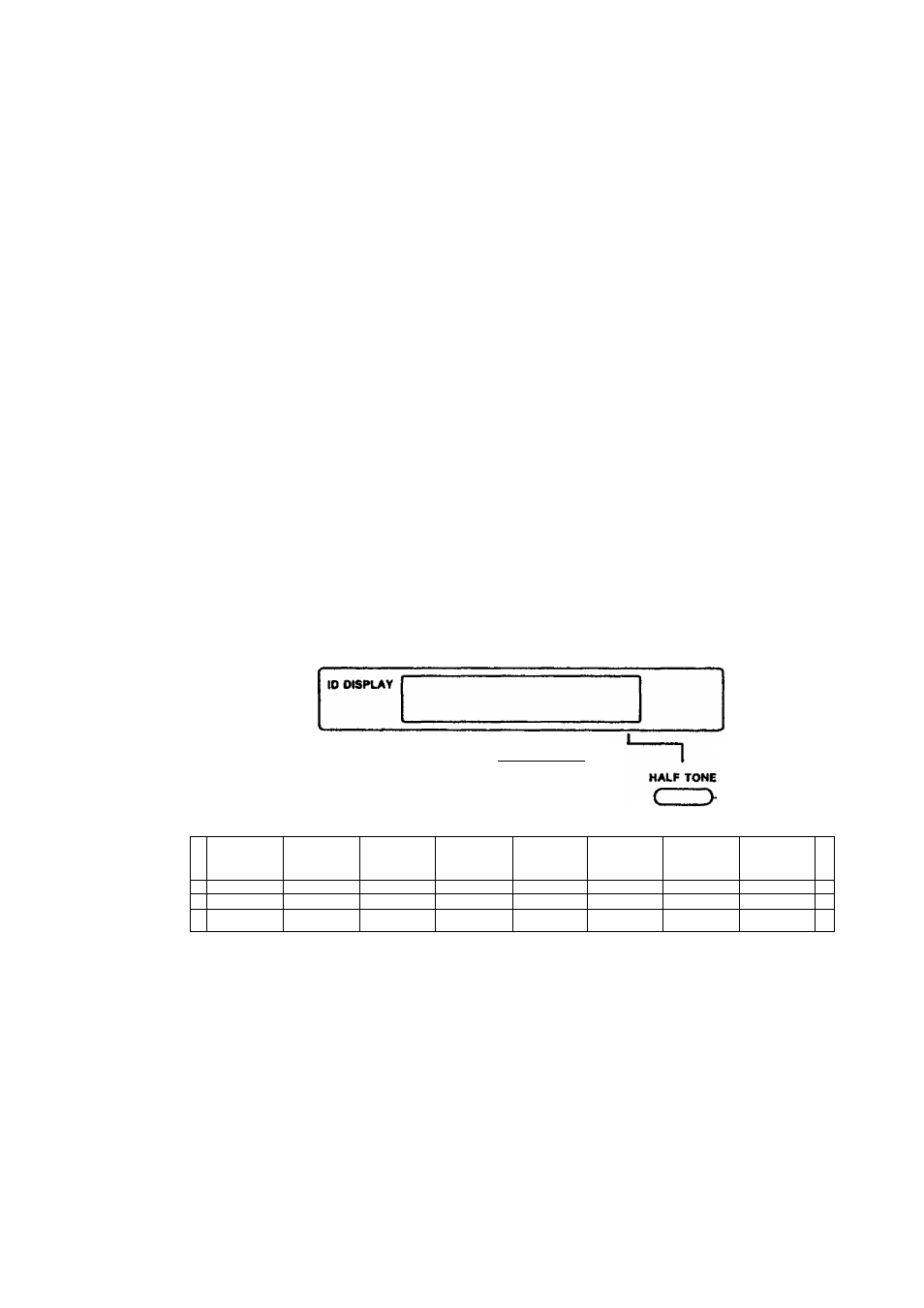

Control Panel
ALARM Lamp
Lights when a document becomes jammed, a
communication error occurs, or recording paper
runs out.
ON LINE Lamp
Lights when communication begins.
POWER Lamp
Lights when tne power is ON.
HALF TONE
Provides ON and OFF settings for halftone
documents. The cursor on the display indicates
Half Tone «ON.
AUTO RCV
Used to set/reset automatic reception. Lights
when automatic reception is set.
DISPLAY
Shows Date and Time, or the current operation. •
If the other station has an ID,
< mark lights up
and the display shows the ID number.
POWER
ON LINE
ALARM
NORMAL
Jr—i
LIGHT
ORIGINAL
c
r—I I Ul
STD FINE S.FINE
RESOLUTION
СНЭ
AUTO RCV
г '
^ --------->
r ) ( ) t....... J i J c _ ; C J Г" )
A В c D E F G H
ORIGINAL
Used to set Normal or Light. The cursor
position indicates the current setting.
Also used to move the cursor to the left.
One-Touch kw (A - H)
Used for OneTouch Dialing.
RESOLUTION
Used to set Standard, Fine, or Super-Fine.
The cursor position indicates the current set­
ting. Also used to move the cursor to the right.
