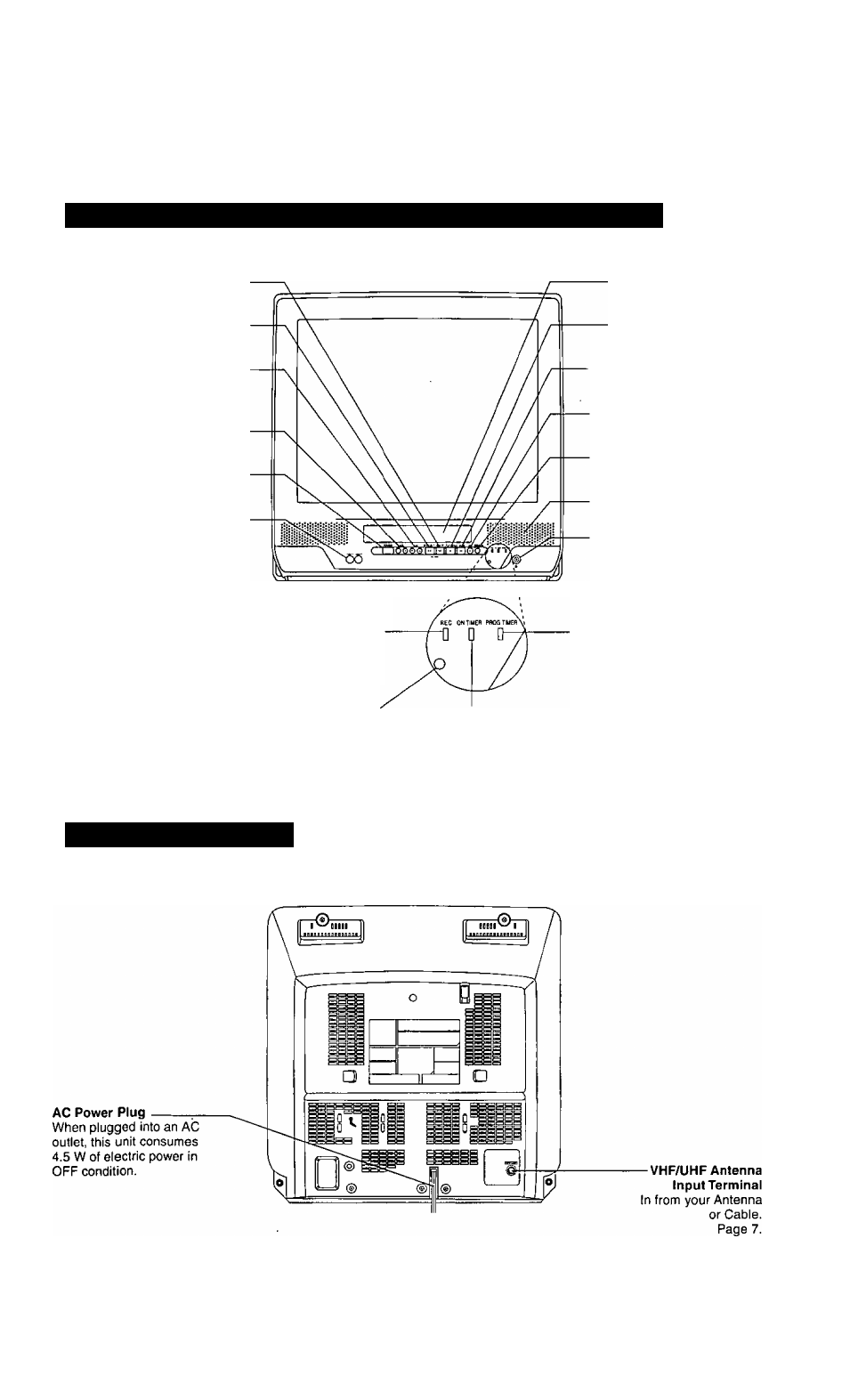

Front View of the unit and Indicators on the Front Panel
REWIND/SEARCH Page 12.
ACTION
Page 9.
STOP/EJECT
ACTION
Page 12.
Page 9.
CHANNEL UP/DOWN Page 10.
TRACKING UP/DOWN Page 12,
SELECT UP/DOWN Page 9.
VOLUME UP/DOWN.
Page 10.
POWER_________
Page 8.
AudioA/ideo In Jack
Page 16.
REC Indicator
Lights during recording.
In Rec Pause or OTR
Pause mode, the
indicator flashes.
Page 13.
Remote Sensor ON TIMER Indicator
Lights when the
On Timer is set.
Page 20.
Cassette Compartment
Page 12.
PLAY/REPEAT
Page 12.
FAST FORWARD/SEARCH
Page 12.
_________________ REC
Page 13.
.TIMER/FM
Pages 21,24.
Built-In Speaker
Phones Jack
Page 10.
PROG TIMER Indicator
Lights when the unit is set for Timer
Recording. It flashes when a Timer
Recording has been set with no tape
inserted, the clock is not set, or the
tape is in motion.
Page 15.
Rear View of the unit
