opying Your Tapes
(Dubbing)
Connection
Front of VCR
VDEOIN!
o
L-AlOlO IN2-n
o o
VIDEOIN 2
AUHOINi
o
o
Front of VCR
(Video In Terminal on the
front of VCR is available)

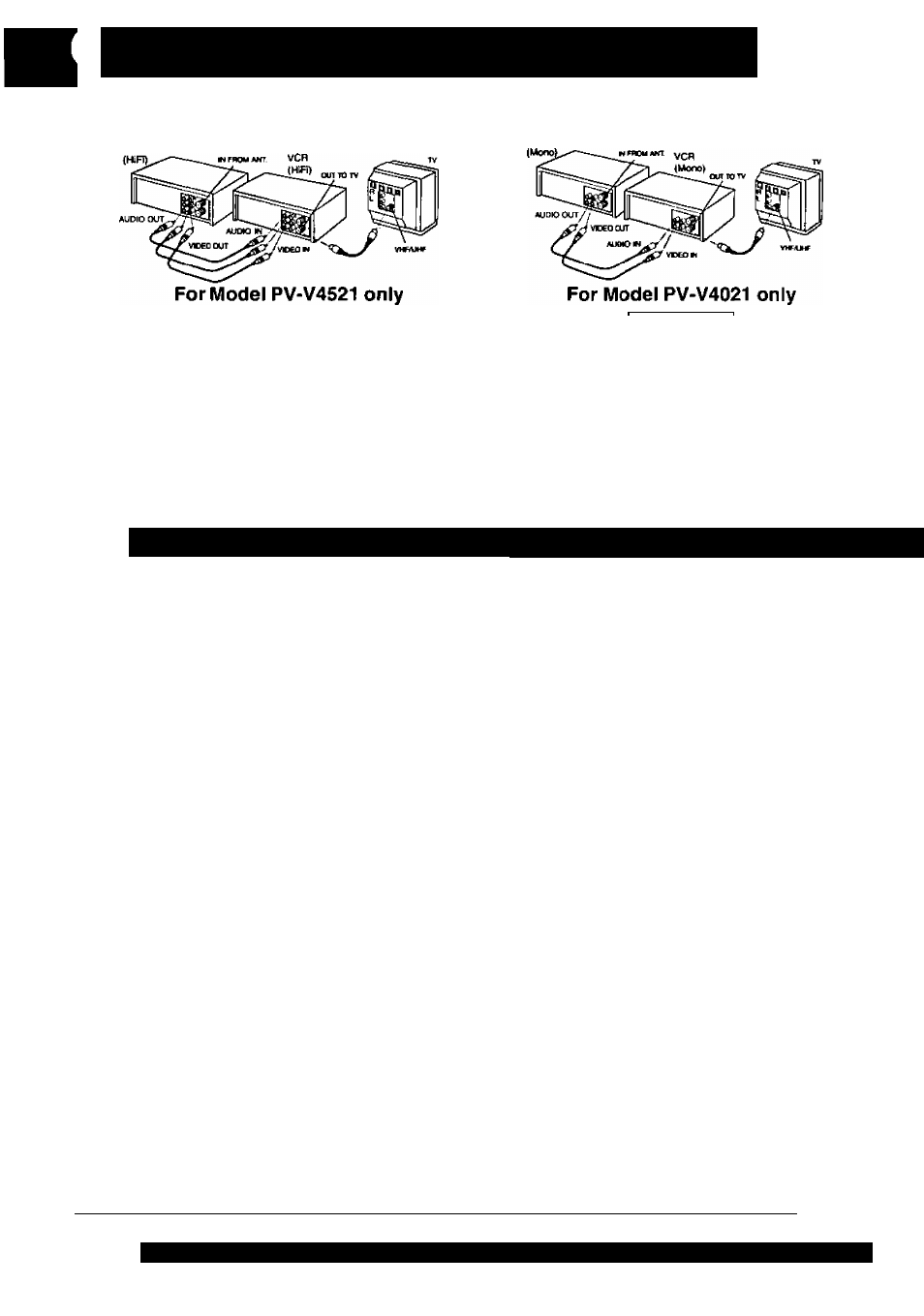

Connect VIDEO OUT terminal on Playing VCR to VIDEO IN terminal on Recording VCR. To
monitor the dubbing, also connect a TV as shown.
Connect “L” and "R" AUDIO OUT terminals on Playing VCR to “L" and “R” AUDIO IN
terminals on Recording VCR. (PV-V4521 Rear)
Connect AUDIO OUT terminal on Playing VCR to AUDIO IN terminal on Recording VCR.
(PV-V4021 Rear)
In place of a Playing VCR, you can use other equipment, such as a Camcoder.
Simply connect the unit’s AudioA/ideo outputs to the Recording VCR.
1
Playing (Source) VCR
Insert pre-recorded tape.
Recording (Editing) VCR
Insert blank tape with record tab.
Press INPUT to set VCR Input mode to LINE1 for
Video Input (Rear) or to LINE2 for Video Input
(Front). (See “Selecting the Input Mode” below.)
Press PLAY, then PAUSE/SLOW
Press REC, then PAUSE/SLOW
immediately to enter PLAY/PAUSE mode, immediately to enter REC/PAUSE mode.
The operation of steps 4 and 5 must be done on both
playing and recording VCRs at the same time.
Press PLAY to start dubbing.
Playing VCR starts playback.
Press PAUSE/SLOW to start dubbing.
Recording VCR starts recording.
Press STOP to stop dubbing.
Press STOP to stop dubbing.
To Monitor Dubbing on Your TV
1
Turn your TV on and tune to the Recording
VCR channel (CH3orCH4).
2
Set the VCR/TV Selector on the Recording
VCRto“VCR."
Selecting the Input Mode
Method 1:
Method 2:
^UNE2-«
Press INPUT repeatedly.
Channel Number<->LINE1 <->LINE2
Press CHA/Y, Display will change as below.
1 **'2**3'*—
(CABLE) (TV) )
i-LINE1*-»-125 or 69
Dubbing tapes protected with Copy Guard will
have poor quality results.
“LI" or “L2" lights on Multi-Function Display
(about 4 sec.) when LINEI or LINE2 is selected.
LINEI: For rear audio/video connection.
LINE2: For front audio/video connection.
^Caution: unauthorized exchanging and/or copying of copyrighted recordings may ba copyright Infringement.^
