Broadcast/VHS Hi-Fi Stereo System

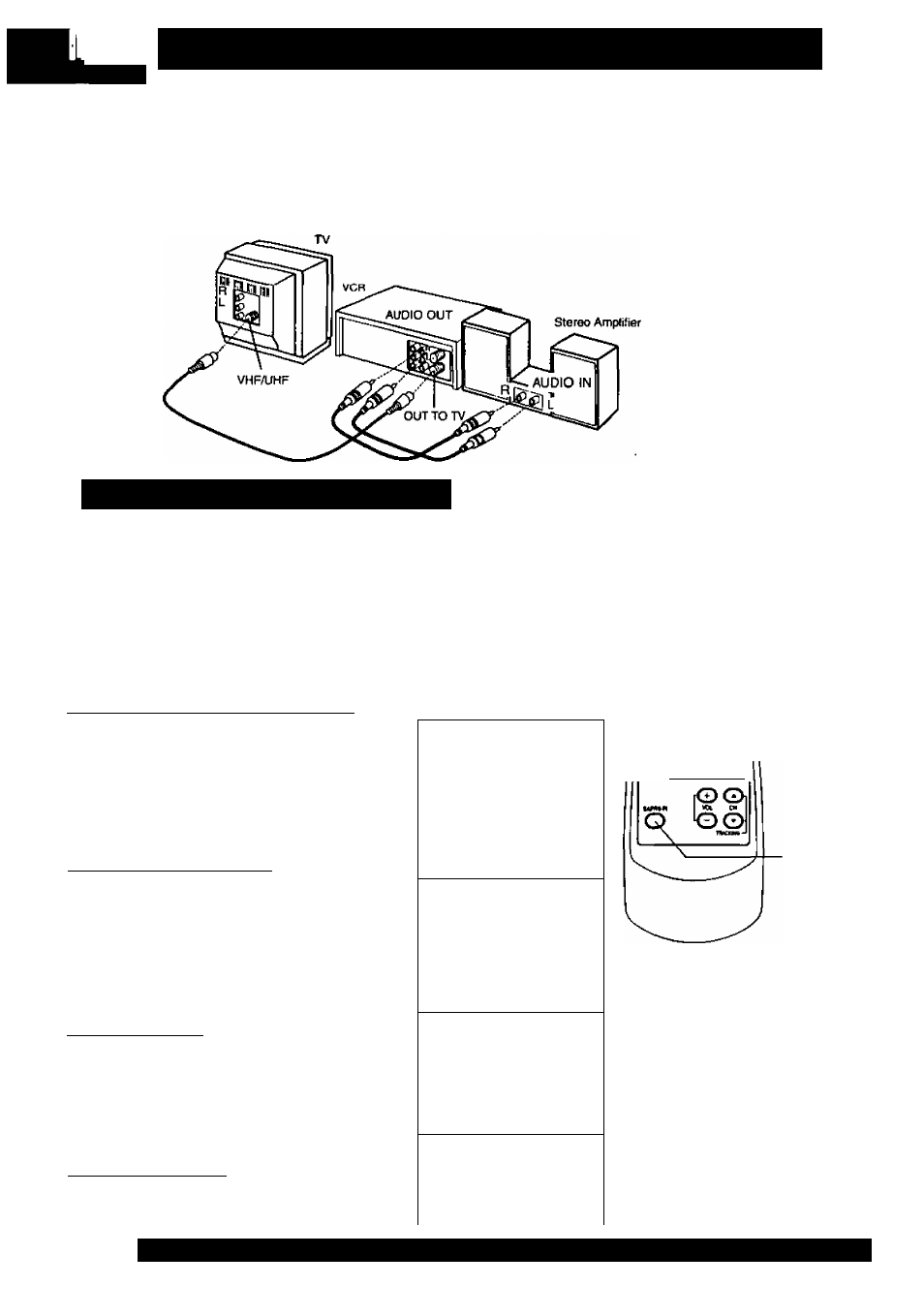

Connection For Model PV-V4521
Make the AudioA/ideo Connection as shown on page 17.
• You can use a TV connected to Stereo amp and speakers
instead of a Stereo TV.
only
Receivable Broadcast Types
The following are possible audio broadcast types and on­
screen displays.
The signal being received is indicated with an “[((” mark while
the selected audio mode is indicated with an arrow.
To display the broadcast signal being received,
-> press DISPLAY.
MTS stereo and SAP broadcast
Multi-channel Television Sound Stereo
(main language) and Secondary Audio
Program (sub language) broadcasts
are being received simultaneously.
Select STEREO or SAP audio mode.
MTS Stereo broadcast
Multi-channel Television Sound Stereo
broadcast. Select STEREO audio
mode.
• If stereo broadcast is weak and
display flickers, select MONO audio
mode for possibly better results.
SAP broadcast
Secondary Audio Program (sub
language) broadcast. Select SAP
audio mode for the sub language.
MONO broadcast
Normal monaural sound broadcast.
STOP 12:00AM
0
fr STEREO
►SAP
MONO
ABC
:00:00
SP
STOP 12:00AM ABC
0:00:00
»STEREO ^ SP
SAP
MONO
STOP 12:00AM ABC
0 :00:00
STEREO SP
»SAP 4
MONO
STOP 12:00AM ABC
0 ;00:00
STEREO SP
SAP
MONO
©(^
e s o o o
S O O ©
5 o ® ®
|j£T MRmu
O ® ® O
o <2)^0
5<:S lo
HMnOH COUHIMHiVIMLAr
Q O O ®
DISPLAY
SAP/
Hi-Fi
Equipped with dbx*-TV
Noise Reduction for
true MTS reproduction.
dbx*-TV Noise
Reduction is required
for good stereo
separation and audio
fidelity, dbx* is a
registered trademark,
and is licensed by dbx*
Technology Licensing.
18
