SAMPLE APPLICATION

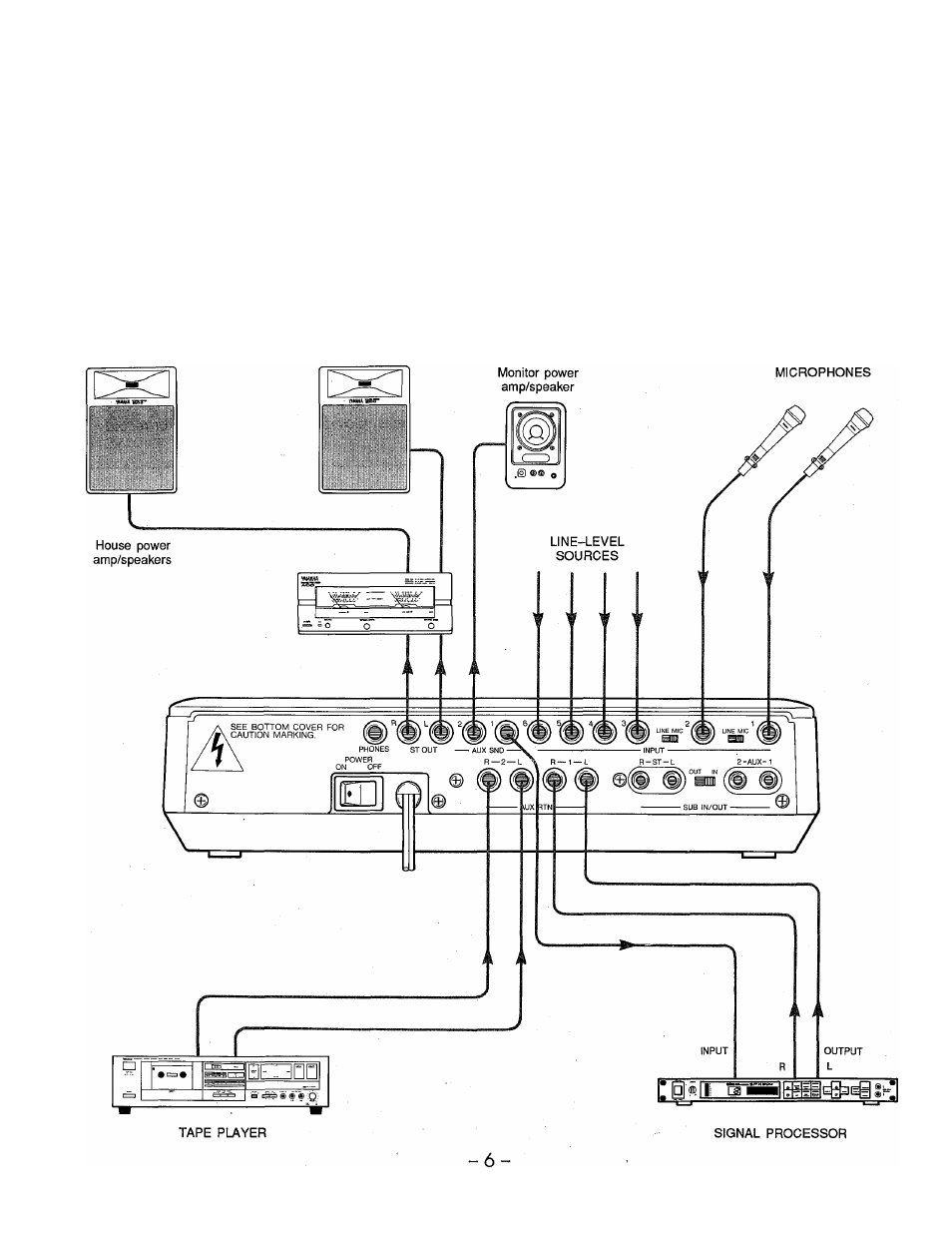

A Small Sound Reinforcement System
In this small sound reinforcement system the required sources are connected to the appropriate input channel connec
tors. The AUX SND 1 output is connected to a digital signal processor for reverb and other effects, and the stereo
output from the signal processor is returned to the AUX RTN 1 connectors. The AUX 1 controls can thus be used to set
up the required effect mix..The AUX 2 controls are used to provide a separate monitor mix for the performers on stage.
The AUX SND 2 output is therefore connected to a power amplifier driving the on-stage monitor speaker system. The
main house power amplifier/speaker system can be fed by the ST OUT L and R outputs. In this system a tape player
is connected to the AUX RTN 2 inputs to provide background music during intermission or recorded accompaniment for
the performance.
