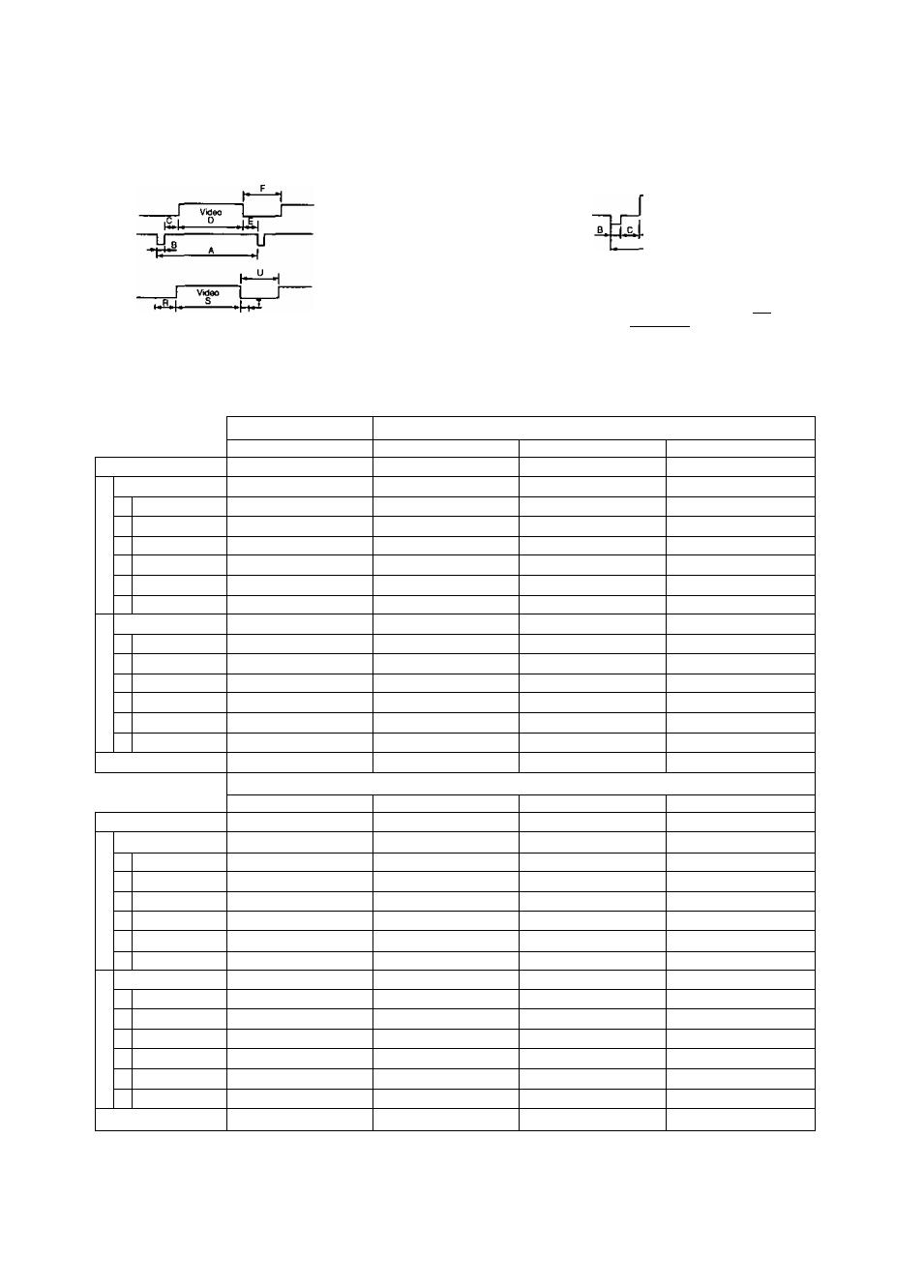

Timing Specifications
Separate Sync. H / V Composite Sync. Sync, on Green
-LT
—“ Video
------ B_
ТГ
V
и
ТППППЛ- ____ nni^’ ■“'Imrl_____________ Г*
*ibS
=1-
"Жтпп_____ пппЛЛ тЛ/1ппп 1-
*1UB [. Q.|,R,|,
Preset timing* Reservation timing**
VESA1600xl200@85Hz VGA640X480 @60Hz VESA800X600 @85Hz VESA1024x768 @85Hz
Dot clock 229.5000 MHz 25.1750 MHz 56.2500 MHz 94.5000 MHz
fH 106.250 kHz 31.469 kHz 53.674 kHz 68.677 kHz
A H-Period 9,412 us (2160 dots) 31.778 US{ 800 dots) 18.631 us (1048 dots) 14.561 us (1376 dots)
я
c F H-Blanking 2.440 us ( 560 dots) 6.356 us ( 160 dots) 4.409 us ( 248 dots) 3.725 US ( 352 dots)
о
N
В H-Sync. width 0.837 US ( 192 dots) 3.813 us ( 96 dots) 1.138 US ( 64 dots) 1.016 us { 96 dots)
о C H-Back porch 1.325 us ( 304 dots) 1.907 us ( 48 dots) 2,702 us ( 152 dots) 2.201 US ( 208 dots)
I
D H-Active , 6.972 us (1600 dots) 25.422 us ( 640 dots) 14.222 us ( 800 dots) 10.836 us (1024 dots)
E H-Front porch 0.279 us ( 64 dots) 0.636 us ( 16 dots) 0.569 us { 32 dots) 0.508 us ( 48 dots)
fV 85.000 Hz 59.940 Hz 85.081 Hz 84.997 Hz
P V-Period 11.765 ms (1250 lines) 16.683 ms (525 lines) 11.756 ms (631 lines) 11.765 ms { 808 lines)
ffl
u V-Blanking 0.471 ms { 50 lines) 1.430 ms ( 45 lines) 0.578 ms ( 31 lines) 0.582 ms ( 40 lines)
Q V-Sync, width 0.028 ms ( 3 lines) 0.064 ms ( 2 lines) 0.056 ms { 3 lines) 0.044 ms ( 3 lines)
a>
> R V-Back porch
0.433 ms ( 46 lines) 1.049 ms { 33 lines) 0.503 ms ( 27 lines) 0.524 ms ( 36 lines)
S V-Active 11.294 ms (1200 lines) 15.253 ms (480 lines) 11.179 ms(600 lines) 11.183 ms{768 lines)
T V-Front porch 0.009 ms ( 1 line ) 0.318 ms ( 10 lines) 0.019 ms ( 1 line ) 0.015 ms { 1 line )
Sync polarity (H / V) Positive / Positive Negative / Negative Positive / Positive Positive / Positive
Reservation timing**
MAC 1152x870 e75Hz*** VESA 1280x1024 @75Hz VESA1280X1024 @85HzVESA1600x1200 @75Hz
Dot clock 100.0000 MHz 135.0000 MHz 157.5000 MHz 202.5000 MHz
fH 68.681 kHz 79.976 kHz 91.146 kHz 93.750 kHz
—
A H-Period 14.560 us (1456 dots) 12.504 us (1688 dots) 10.971 us (1728 dots) 10.667 us (2160 dots)
C
F H-Blanking 3.040 us ( 304 dots) 3.022 us ( 408 dots) 2.844 us { 448 dots) 2.765 us ( 560 dots)
О
N
В H-Sync. width 1.280 us ( 128 dots) 1.067 us { 144 dots) 1.016 us ( 160 dots) 0.948 US { 192 dots)
о C H-Back porch 1.440 US ( 144 dots) 1.837 us ( 248 dots) 1.422 us ( 224 dots) 1.501 us{ 304 dots)
X D H-Active
11.520 us (1152 dots) 9.481 us (1280 dots) 8.127 us (1280 dots) 7.901 us (1600 dots)
E H-Front porch 0.320 us ( 32 dots) 0.119 us ( 16 dots) 0.406 us { 64 dots) 0.316 US ( 64 dots)
fV 75.061 Hz 75.025 Hz 85.024 Hz 75.000 Hz
P V-Period 13.322 ms (915 lines) 13.329 ms (1066 lines) 11.761 ms (1072 lines) 13.333 ms (1250 lines)
u V-Blanking 0.655 ms ( 45 lines) 0.525 ms { 42 lines) 0.527 ms ( 48 lines) 0.533 ms { 50 lines)
Q V-Sync. width 0.044 ms ( 3 lines) 0.038 ms ( 3 lines) 0.033 ms { 3 lines) 0.032 ms ( 3 lines)
о
> R V-Back porch
0.568 ms { 39 lines) 0.475 ms ( 38 lines) 0.483 ms ( 44 lines) 0.491 ms ( 46 lines)
S V-Active 12.667 ms (870 lines) 12.804 ms (1024 lines) 11.235 ms (1024 lines) 12.800 ms (1200 lines)
T V-Front porch 0.044 ms ( 3 lines) 0.013 ms { 1 line ) 0.011 ms ( 1 line ) 0.011 ms { 1 line )
Sync polarity (Н / V) Negative / Negative Positive / Positive Positive / Positive Positive / Positive
Note: All modes are Non-Interlaced.
* Factory Presets have exact size & centering.
** Factory Reservation have approximate size & centering.
Requires the use of Optional Mac Adapter UNIMAC-82D.
