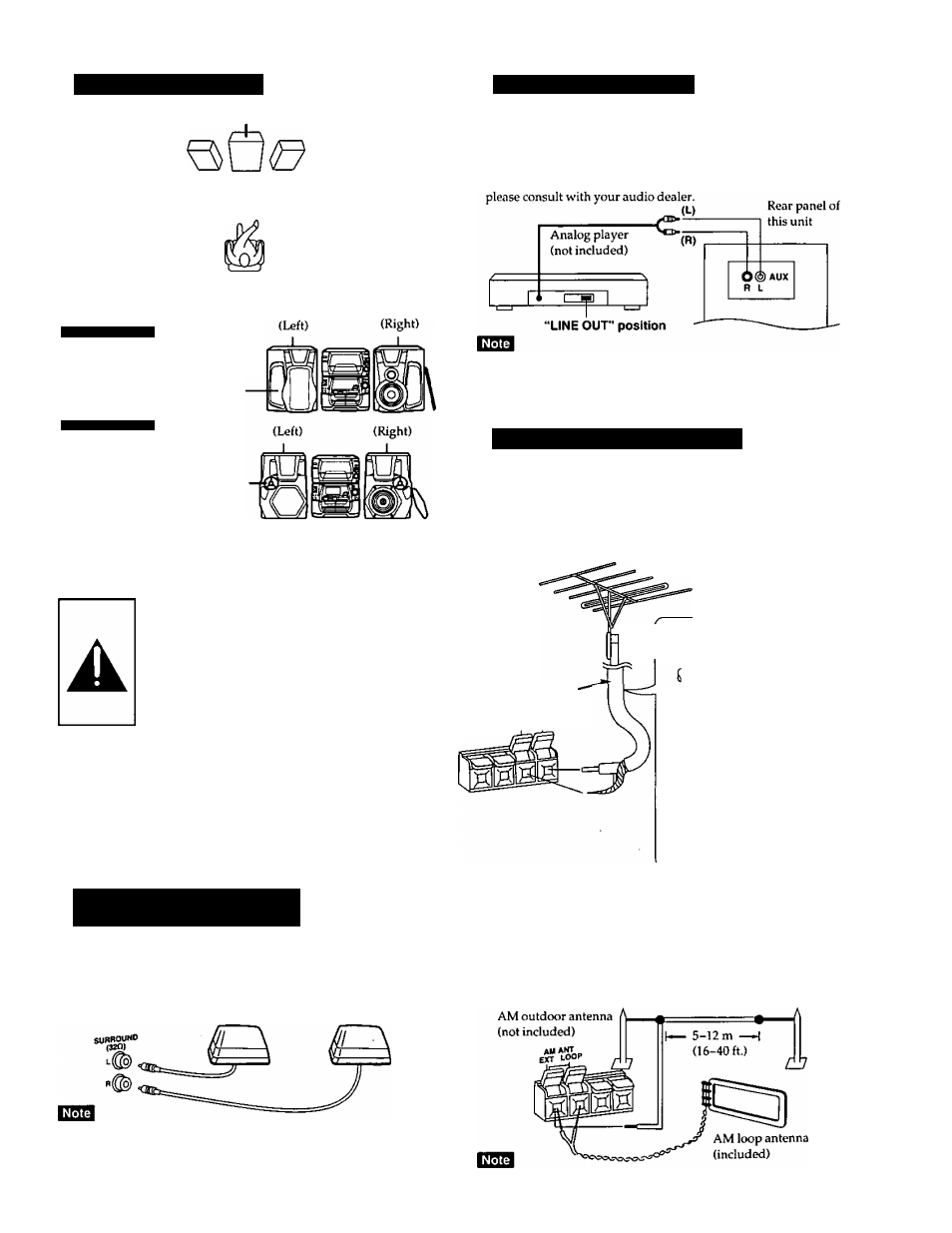

Placement of speakers
Main units (included)
Front speaker (Left)
(included)
Surround speaker (Left)
(not included)
□
Front speaker (Right)
(included)
Surround speaker (Right)
(not included)
0
Placement of front speakers
SC-AK90'SC-AK91
Place the speakers so that the metal
net is on the outside.
Metal net
SC-AK70'SC-AK71
Place the speakers so that the
midrange is on the outside.
Midrange
For your reference
•You can take the front net off speakers,
• For your listening pleasure, keep your speakers from touching the
system.
Caution
Use the speakers only with the recommended
system. Failure to do so may lead to damage to
the amplifier and/or the speakers, and may
result in the risk of fire. Consult a qualified
service person if damage has occurred or if you
experience a sudden change in performance.
Placement of surround speakers
We recommend that surround speakers be placed on the side of or
slightly behind the listener at ear level.
However the position should be adjusted to your personal prefe­
rence, because the effect varies to some degree depending upon the
type of music and the music source.
Optional surround speaker
connections
Connecting the surround speakers produces a feeling of depth and
movement of sound, and provides the listener with a feeling of
presence like that of a movie theater.
(Left) (Right)
If only one of the surround speakers is connected, no sound will come
out. Be sure to connect both speakers.
External unit connection
m
• For details, refer to the instruction manual of the units which are to
be connected,
•This example shows how to connect the analog player with the
PHONO OUT/LINE OUT switch.
• When units other than those described below are to be connected.
•Only an analog player with a built-in phono equalizer can be con­
nected.
•Set the switch to the "LINE OUT" position at the back of the analog
player.
Optional antenna connections
You may need an outdoor antenna if you use this system in a moun­
tainous region or inside a reinforced-concrete building, etc.
FM outdoor antenna
Disconnect the FM indoor antenna if an FM outdoor antenna is
installed.
FM outdoor antenna
(not included)
75Í1 coaxial
cable (not included)
OND rw
© Remove a piece of the outer
vinyl insulator.
30 mm (IMs")
© Twist the shield braid.
Shield braid
Expose the core wire,
15 mm
I—I , Core
wire
An outdoor antenna should be installed by a qualified technician
only.
AM outdoor antenna
Connect the outdoor antenna without removing the AM loop an­
tenna. Run 5 to 12 m of vinyl-covered wire horizontally along a
window or other convenient location.
When the unit is not in use, disconnect the outdoor antenna to pre­
vent possible damage that may be caused by lightning. Never use an
outdoor antenna during an electrical storm.
