Connecffons

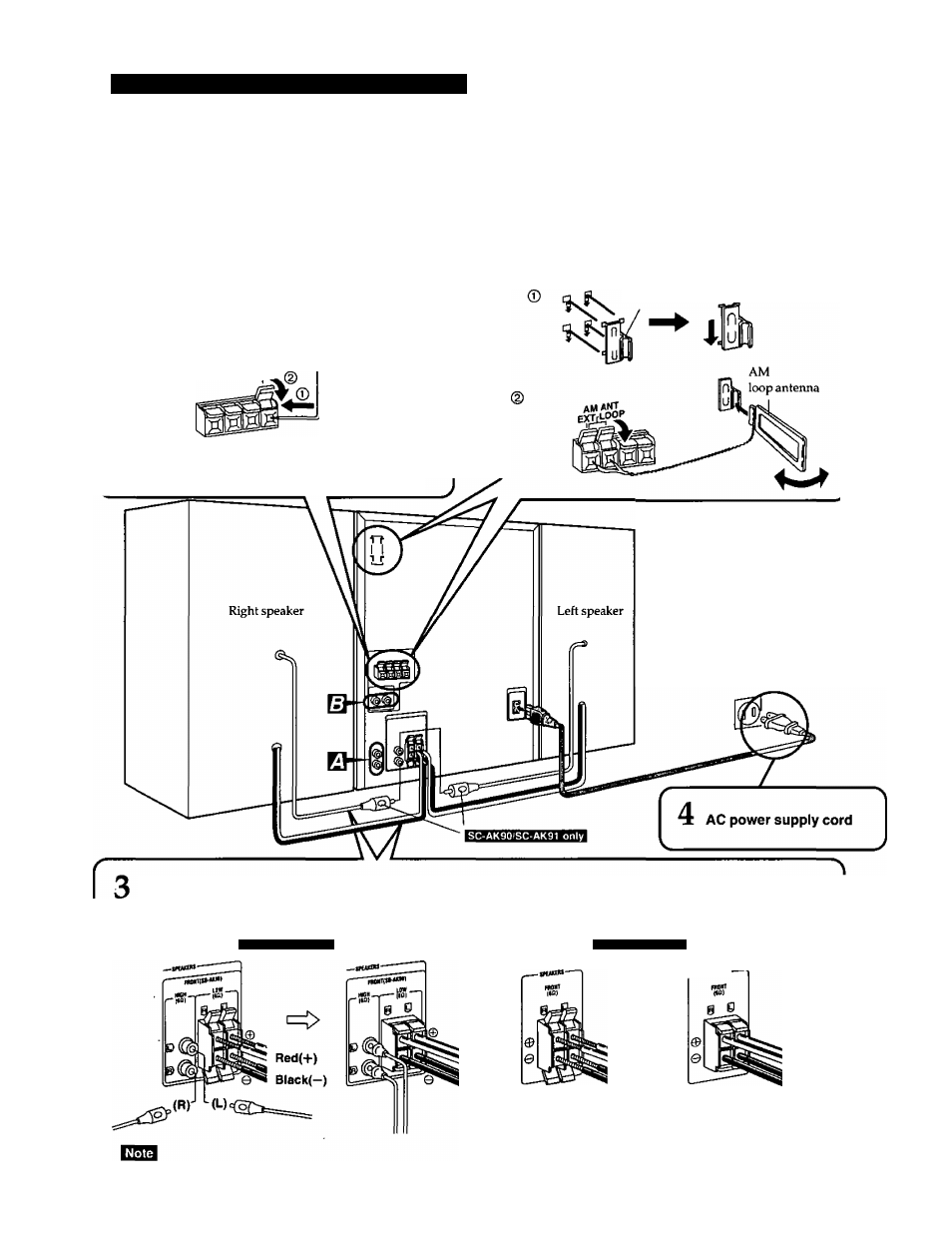

Basic connections (for supplied accessories)
■
o>
3
£
0)
flO
Before making connections:
•Make sure you correctly identify the left/right sides before placing the speakers, (see page 7.)
• Plug the AC power supply cord into a household AC outlet only after all other connections have been made.
FM indoor antenna
Tape the antenna to a wall or column, in a position
where radio signals are received with the least amount
of interference.
Adhesive tape —
FM indoor
antenna
FM
750
X
For best reception sound quality:
An FM outdoor anterma is recommended. (See page 7.)
AM loop antenna
After attaching the antenna, turn on the system and
tune in a broadcast station. Then, turn the antenna to
the angle of best reception and least interference.
AM loop
antenna holder
Household AC outlet
(AC120V/60 Hz)
Speaker cords
Match the cords to the terminals by color and connect
SC-AK90/SC-AK91
SC-AK70'SC-AK71
Red{+)
Black(—)
To prevent damage to circuitry, never short-circuit positive (-I-) and
negative (—) speaker wires.
