Tuning the TV Set to the Video Piayback Channel
The adjustments described on this page are not
necessary, if the VTR is connected to the TV set via the
Video/Audio output sockets.
Video Playback Channel Selector
This switch is used to select the video playback channel
which is not occupied with any TV station (2 or 3).
1
Turn the TV set on and select the AV programme
position or another programme position that is not
occupied by any TV station.
Press the VTR On/Off Switch to turn the VTR On,
{FRONT SIDE)
/ ^
VTR
•The corresponding indicator lights up.
Press the VTR/TV Selector so that the “VTR"
Indicator in the Multi-Function Display lights up,
—
VTR/TV
4
Set the Test Signal Switch to “On".
ON'
OFF'
B
TEST SIGNAL
5

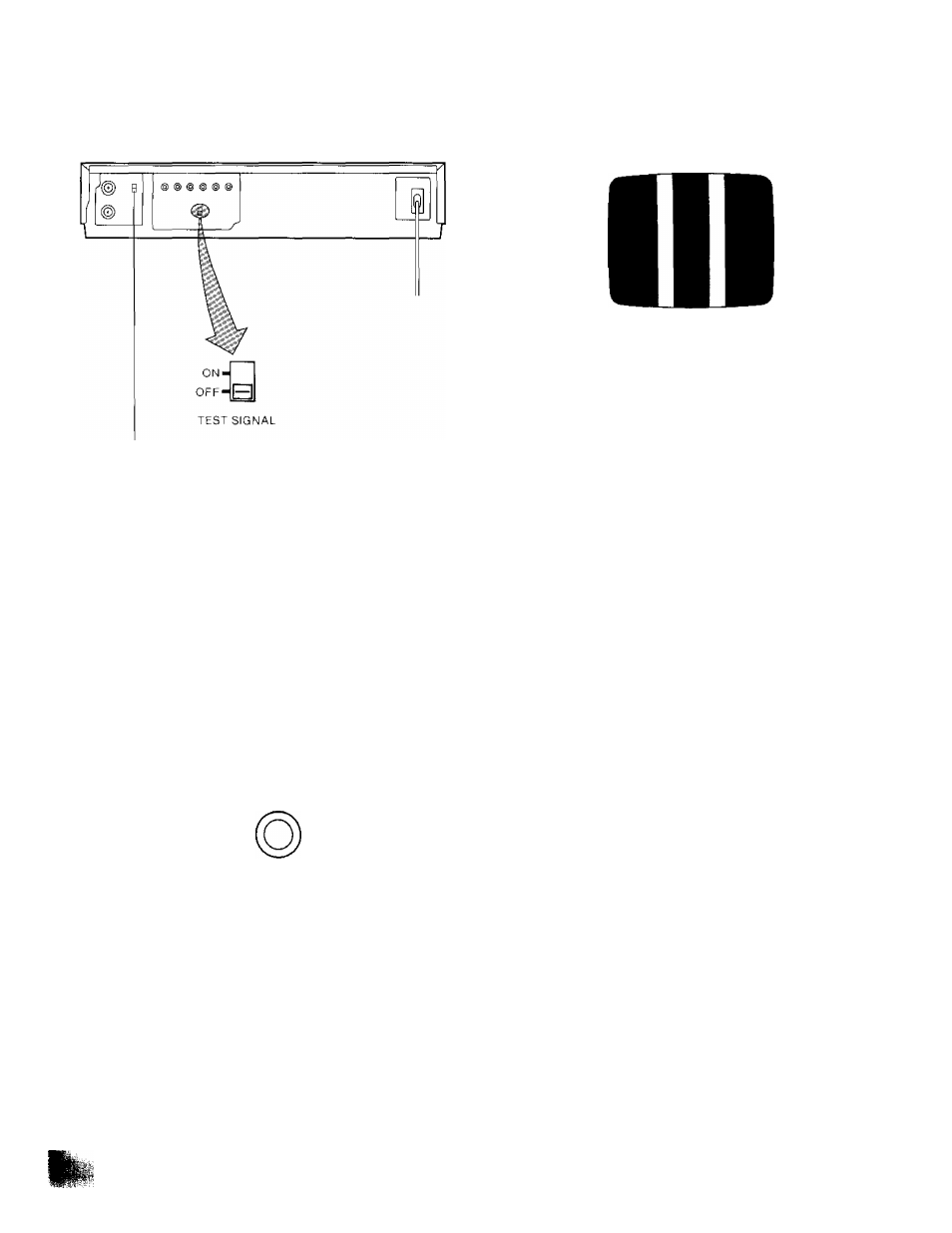

Tune the selected programme position (Channel) of
the TV set to VHF channel 2 or 3,
Confirm on your TV set that the received test pattern
is as shown.
6
Set the Test Signal Switch to “Off", Your TV is now
ready to receive the RF output signal from the VTR.
ON
off
HB
TEST SIGNAL
7
To check, play back a pre-recorded tape and confirm
picture quality.
