SC-AK22: Except Russia and Ukrainaj

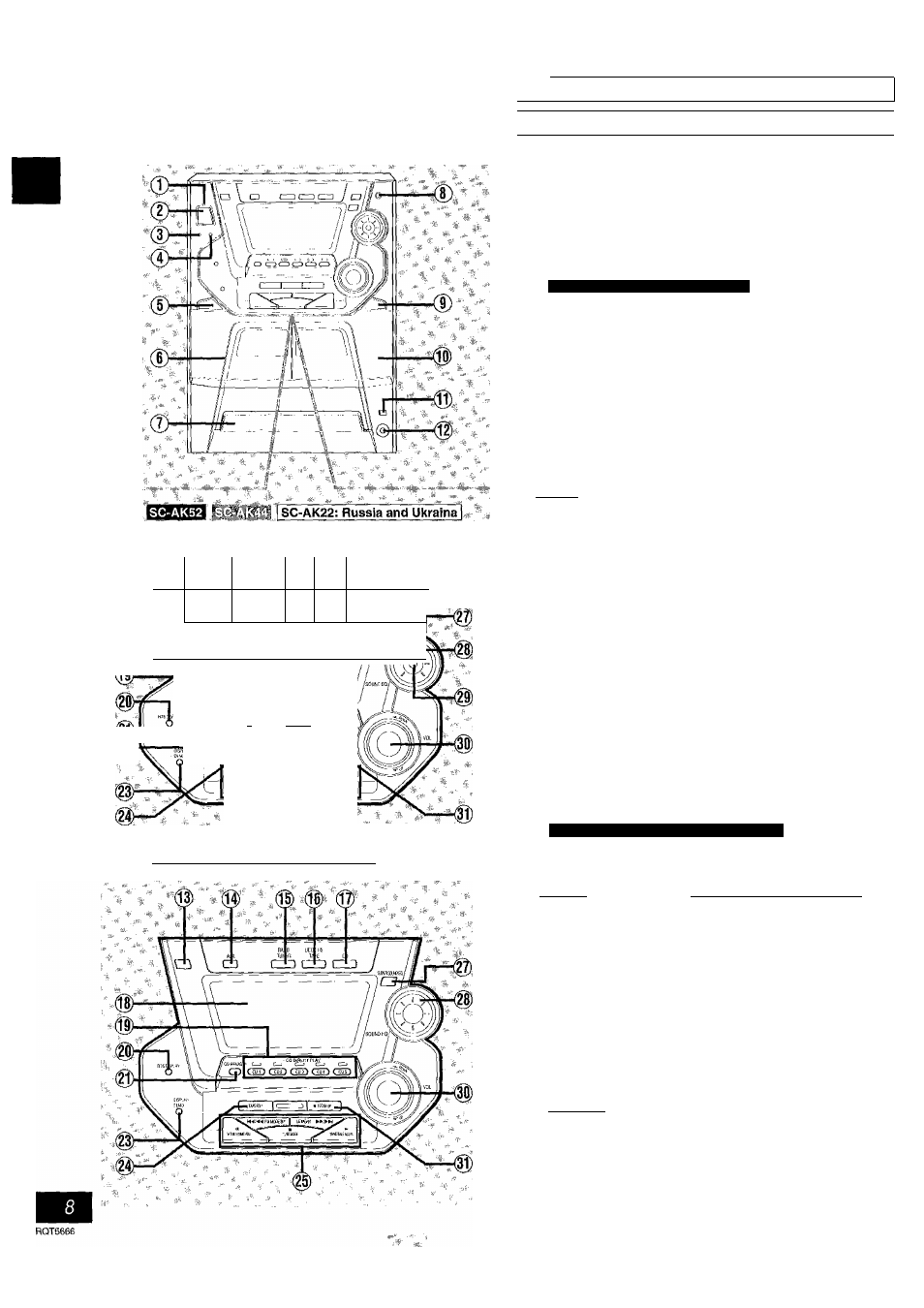

front panel contmis
Ш Main unit
No, Name Ref. page
(T) AC supply indicator (AC IN)
This indicator lights when the unit is connected to the AC mains
supply,
(2)
Standby/on switch (c!)/l, POWER).......................... 11
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of
power.
For United Kingdom and Europe
Standby/on switch ((i>/l).......................................... 11
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of
power.
(3) Play timer/record timer button
{©PLAY/0REC).........................................................27
® Clock/timer button (CLOCK/TIMER).............. 11, 27, 28
(D Deck 1 open button (i; DECK 1 OPEN)................. 19
(D Deck 1 cassette holder........................................... 19
Cz) Disc tray
® Еяиая and шаг« only
Super woofer on/off button (S.WOOFER).............. 25
(Ф Deck 2 open button (± DECK 2 OPEN).............. 19
@ Deck 2 cassette holder.......................................... .19
@ CD open/close button (±, OPEN/CLOSE).......... 15
® Headphone jack (PHONES)....................................... 29
Center console
© Remote control signal sensor................................. 5
(0) AUX button (AUX)................................................... 29
@ Tuner/band select button (TUNER, BAND)............ 12
(0) Tape/deck select button (TAPE, DECK 1/2)...........19
(g) CD button (CD)........................................................ 18
(§) Display
® Disc direct play buttons and indicators
(CD1 - CD 5)........................................... ....................15
Foi;4Jnited Kingdom and Europe only
RDS button (RDS DISPLAY)....................................12
@ CD mcnager button (CD MANAGER)................... 18, 24
(§) EfiWSig, and|sC-AK22: Russia and Ukrai^ only
Reverse mode select button (REV MODE).............19
@ Display select/demonstration button
(-DISPLAY/-DEMO).............................................. 10, 11
(0 Tape edit button (TAPE EDIT)....................................21
0 Basic operating buttons
Functions change according to the source.
SC-AK52 and only
3D Al button (3D Al).................................................. 26
Super sound EQ button (SUPER SOUND EQ)....... 25
Jog control (SOUND EQ)................ ................ .........25
H3M3.4J and only
Joy stick (SOUND EQ)....... ................. .................... 26
Volume control (VOL)............................................... 12
Recording start/stop button (• REC/STOP)............22
