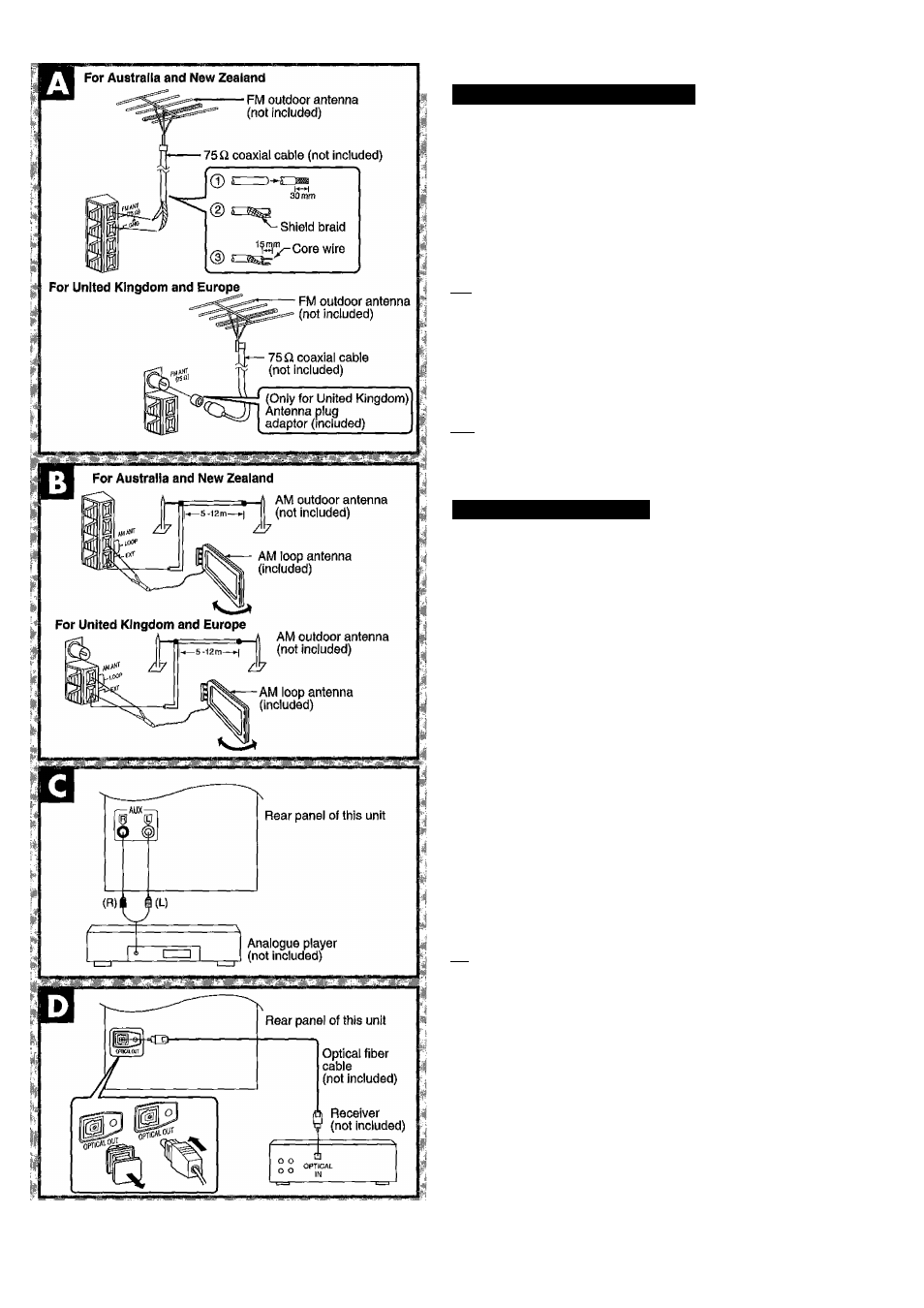

Optional antenna connections
You may need an outdoor antenna if you use this system in a
mountainous region or inside a reinforced-concrete building, etc,
FM outdoor antenna
Disconnect the FM indoor antenna if an FM outdoor antenna is in­
stalled.
(3) Remove a piece of the outer vinyi insuiator.
(2) Twist the shield braid,
d) Expose the core wire.
IWi
An outdoor antenna should be installed by a qualified technician only.
AM outdoor antenna
Connect the outdoor antenna without removing the AM loop antenna.
Run 5 to 12 m of vinyl-covered wire horizontally along a window or
other convenient location.
■mi
When the unit is not in use, disconnect the outdoor antenna to prevent
possible damage that may be caused by lightning. Never use an
outdoor antenna during an electrical storm.
External unit connection
• Make sure that the power supply for all components has been
turned off before making any connections.
• For details, refer to the operating instructions of the unit which are
to be connected.
• All peripheral components and cables sold separately.
Connecting analogue equipment
An analogue player with a built-in phono equalizer can be connected.
When units other than those described are to be connected, please
consult your audio dealer.
Connecting digital equipment to the optical
fiber out terminal
(For United Kingdom and Europe:
model SC-AK52 and SC-AK44 only)
Remove the dust-protection cap and connect this unit to other digital
equipment with an optical fibre terminal, such as a receiver or digital
surround processor.
•
Leave the cap attached when this terminal is not being used.
For your reference
If you have DTS format CDs, you can enjoy six channel playback by
connecting this unit to a receiver or digital surround processor that
has a DTS decoder.
imi
Use only the optical fibre terminal when playing back DTS format
discs. DTS signals can only be correctly output through the digital
terminal.
