IÌ MTS Broadcast/VHS Hi-Fi Stereo System
©
l^c Check list before you begin
□ The VCR is connected to a stereo TV, or a mono TV and an external stereo amp or receiver with speakers.
□ The VCR and other components are plugged in and turned on.

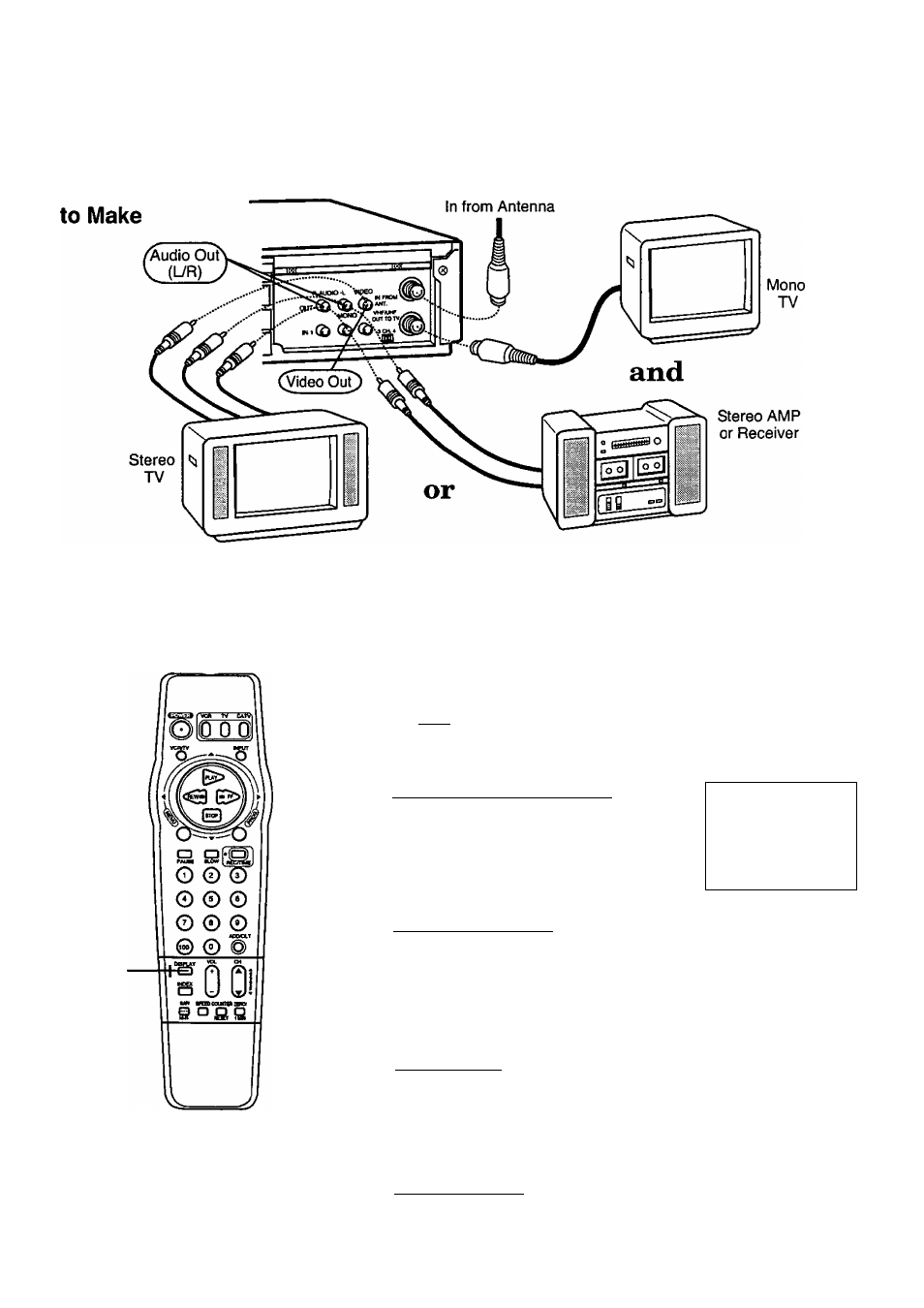

Connections
When recording, you may monitor in stereo,
by connecting the VCR to either a stereo TV,
or a mono sound TV with an external stereo
amp and speakers.
DISPLAY
Equipped with dbx® -TV Noise Reduction
for true MTS reproduction. dbx* -TV
Noise Reduction is required for good
stereo separation and audio fidelity,
dbx* is a registered trademark, and is
licensed by dbx® Technology Licensing.
22
Receivable Broadcast Types
The following are possible audio broadcast types and on-screen displays.
Parenthesis indicate signal(s) not being received. The arrow indicates the
selected audio mode.
, DISPLAY
-a
Push DISPLAY to display the broadcast
signal currently being received.
Mrs Stereo and SAP broadcast
Multi-channel Television Sound Stereo
(main language) and Secondary Audio
Program (sub language) broadcasts are
being received simuitaneously. Select
STEREO or SAP audio mode.
MTS Stereo broadcast
Multi-channei Television Sound Stereo
broadcast. Select STEREO audio mode.
• If a stereo broadcast is weak and the display
flickers, you may want to select the MONO
audio mode for better results.
SAP broadcast
Secondary Audio Program (sub language)
broadcast. Select SAP audio mode for the
sub language.
MONO hroiidcast
Normal monaural sound broadcast.
STOP 12:00AM CH08
0:00:00
SLP
STEREO
SAP
MONO
<
STOP
STEREO
(SAP)
MONO
12:00AM CH08
0 : 00:00
SLP
<
STOP 12:00AM CH08
0 : 00:00
SLP
(STEREO)
SAP <
MONO
STOP 12:00AM CH08
0 : 0 0 : 0 0
SLP
(STEREO)
(SAP)
MONO 4
