On-Screen Displays (OSD)

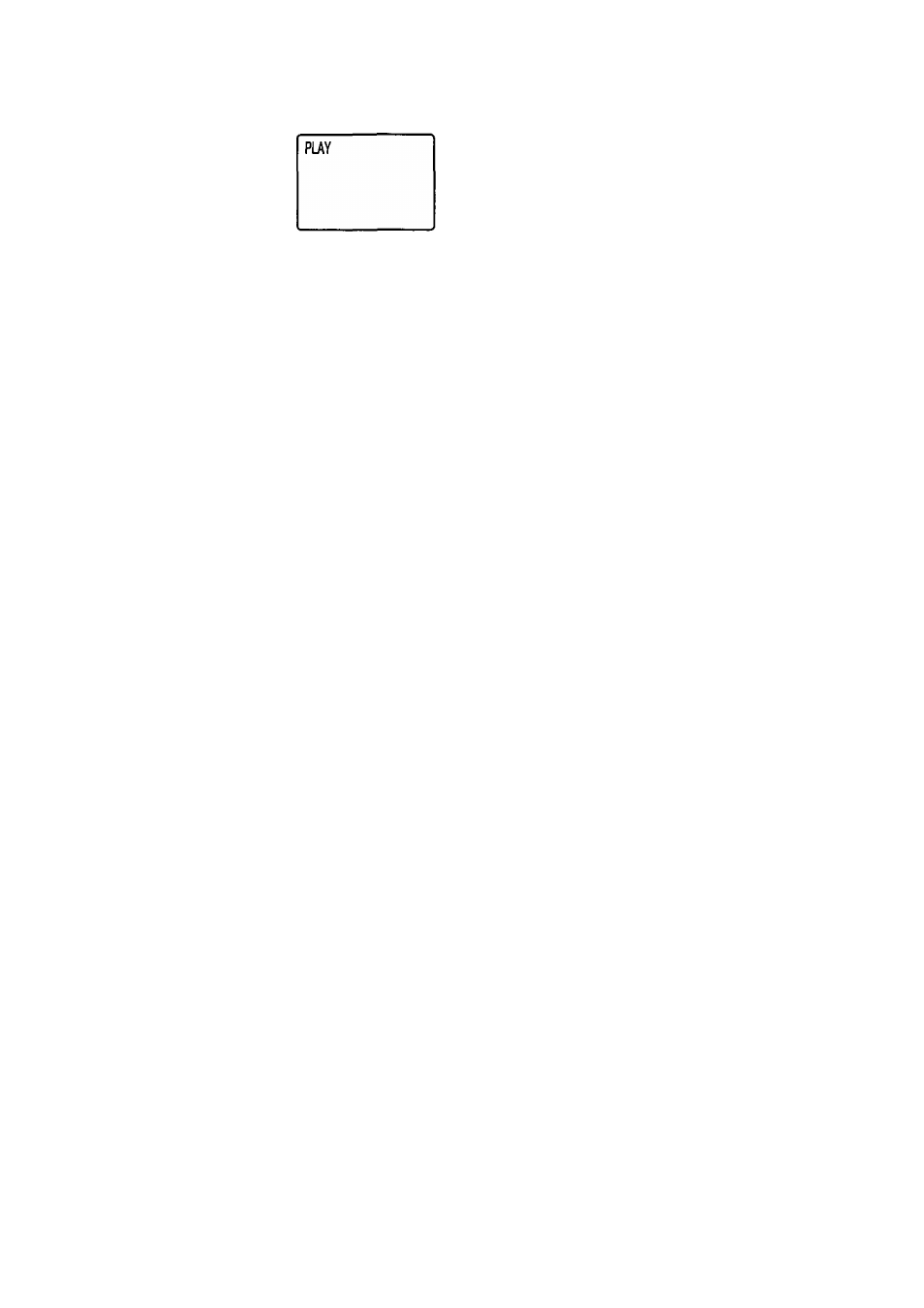

Function & Channel Display
When a function button is
pushed, e,g. PLAY, or you
change channels, a 4 second
display appears first in large
and then small characters.
Warning and instruction Displays
These displays will ale t you of a missed operation or
provide further instructions.
If no active channels are
found for CHANNEL
MEMORY...
(See page 12.)
NO CH FOUND
PLEASE CHECK ANTENNA
CABLE CONNECTION THEN
PUSH VCR CH UP KEY AGAIN
Menu Screen
1
Push MENU to display
the menu.
2
Push
AT
and ► to
make your selection.
................ MENU ----------
SET UP CHANNEL
IDI DMA/ LANGUE: ENGL ISH
SELECT
:A
▼ KEY
SET :► KEY
END
KEY
To get the most from each feature, please read the
Operating Manual before attempting any operation.
VCR Status & Clock Display
DISPLAY
Push DISPLAY to display or
remove the overlay shov\/n below.
Function Status
Rec Time
Remaining —
(OTR mode only
see page 16.)
Current Time
Channel
REC
12:00AM CH08
0:25
0:00:00
SLP
X Tape Speed Broadcast Audio • This display will time out in 5 seconds. Counter Blank Tape/ No Video Signal Indication When a blank section of tape comes up in Play mode, or the selected channel has no broadcast signal, the TV screen will turn solid blue. If you attempt to set or review a Timer Recording (See page 18.) After a Timer Program has been set... If you push REC on the remote control or VCR, and a cassette is inserted with no record tab... (See page 16.) If you push PLAY, FF, REW, or REC on the remote (See pages 15,16.) If you push POWER or STOP during a Timer Recording... If head cleaning becomes necessary while playing PLEASE SET CLOCK BEFORE PROGRAMMING TURN VCR OFF FOR TIMER RECORDING CHECK CASSETTE RECORD TAB NO CASSETTE PLEASE INSERT A CASSETTE TO CANCEL TIMER REC PUSH POWER THEN STOP KEY VIDEO HEADS MAY NEED CLEANING PLEASE INSERT head CLEANING CASSETTE OR REFER TO MANUAL END:PUY KEY If you push a function button other than STOP/EJECT or POWER while the VCR is in VCR Lock mode... (See page 30.) VCR LOCK ACTIVATED 14
Being Received
(See page 22.)
and the Clock is not set...
(See page 18.)
control or VCR without
a cassette inserted...
(visible in VCR mode only)
(See page 19.)
back a tape...
(See page 5.)
