9
RCS1100-1.2.0en Preparation,Setting up
6

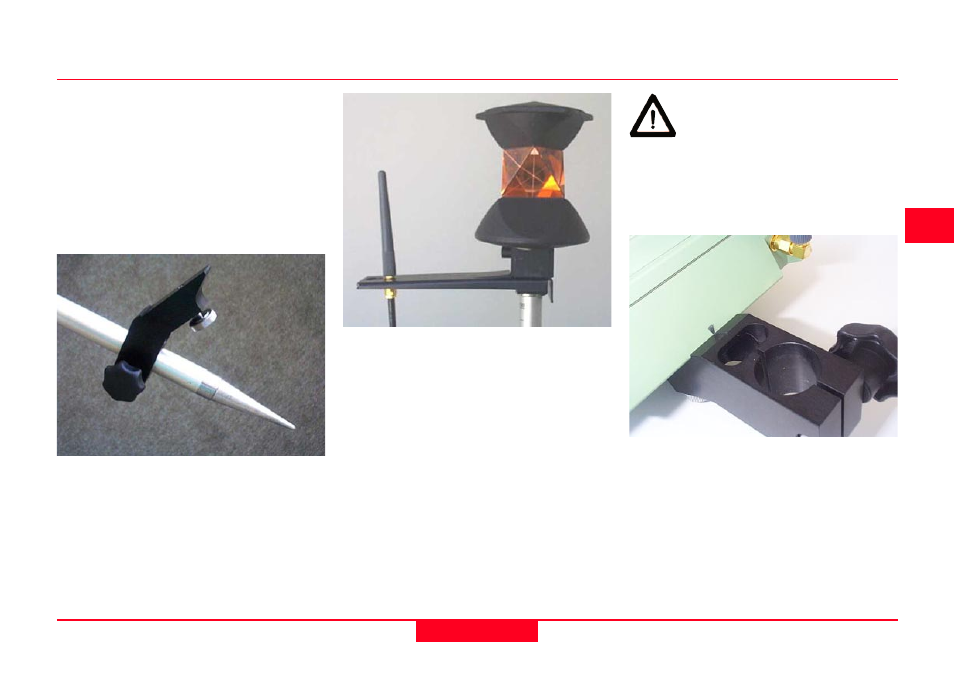

Using the clamping screw provided,
secure the reflector-pole adapter at
the appropriate height on a GLS11
reflector pole. The adapter can
remain on the reflector pole during
transport.
Fitting the RCS1100 to the reflector pole
Now connect the RCS1100 to the
reflector-pole adapter by lining up
the marks and tightening the screw.
Connect the antenna extension to
the RCS1100.
At short distances, or under
favourable radio transmission
conditions, you can leave out the
antenna extension and connect the
antenna directly to the RCS1100.
WARNING:
If the radio modem is
switched on, do not carry the
antenna closer than 15 cm to your
body.
Screw the antenna to the end of the
antenna extension and connect the
antenna extension to the reflector
adapter.
Connecting the RCS1100 (lining up
the marks on housing and adapter)
The angle bracket and the position of
the antenna socket together ensure
that the antenna is vertical.
