Operation

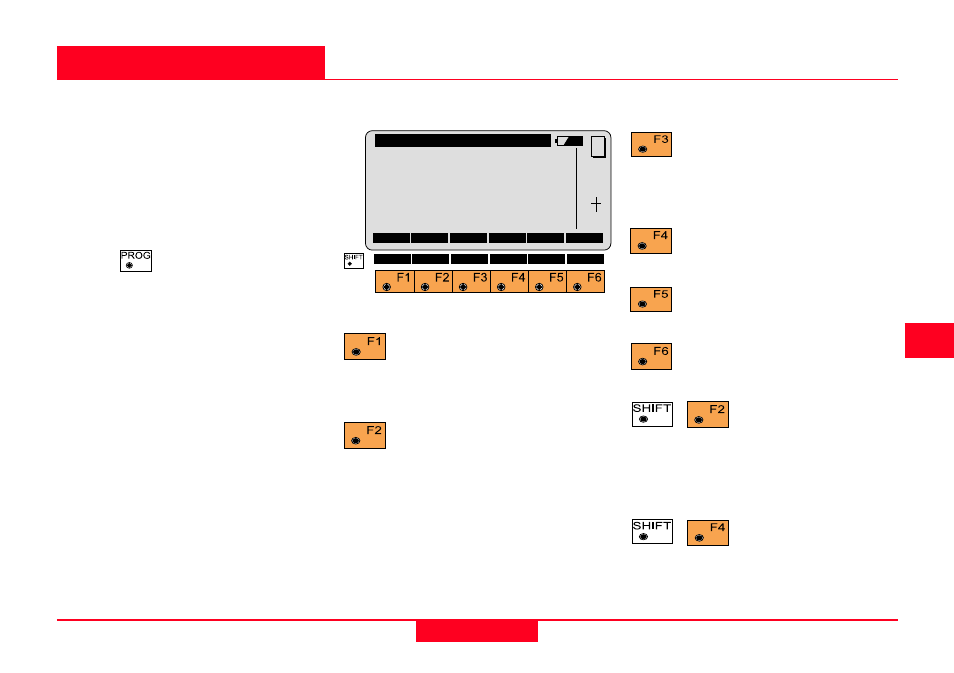

Allocation of keys
The allocation of the keys on the
RCS1100 is the same as on the
TPS1100.
When the RCS1100 is switched on,
the TPS1100 automatically changes
to LOCK mode (prism tracking).
The key
activates special
functions for aligning the TPS1100
with the prism.
The shape of the search window is
rectangular (default size: Hz = 30
gon, V = 15 gon). The dimension of
the search window in RCS mode can
be defined in the "RCS Searching
Window" function.
The target functions are required :
• to achieve the first LOCK
• for LOCK replacement in the
event of LOCK loss (through
longer viewing interruptions).
Sets the TPS1100 to
compass mode, enabling the
TPS1100 to be targeted on the prism
with the help of a compass.
Starts PowerSearch.
In the joystick mode, the
TPS1100 can be turned
horizontally or vertically with the aid
of the cursor keys.
Activate/deactivate working
area.
Turns the TPS1100 to the
last point stored.
Switches on/off the RCS
operating mode.
By entering relative
or absolute angle
values, the TPS1100 can be turned
by the corresponding amount or set
to the angle value required.
Define a working area.
Program selection
01 Free Station
02 Resection
03 Orientation & Ht.Transfer
04 Stakeout
05 Tie Distance
06 Remote Height
COMPS PS JSTCK WORK+ LAST RCS+
MC
WORKA QUIT Hz/V
