DUT# configure terminal Enter the Configure mode.
DUT(config-router)#network
10.10.11.0/24 Associate networks with the RIP process.
R2
DUT# configure terminal Enter the Configure mode.
DUT(config)# router rip Enter the RIP routing process.
DUT(config-router)#network
10.10.11.0/24 Associate networks with the RIP process.
DUT(config-router)#network
10.10.12.0/24 Associate networks with the RIP process.
Validation Commands
show ip rip, show running-config, show ip protocols rip, show ip rip interface, show ip
route
16.3 Specifying the RIP version
Configure a router to receive and send specific versions of packets on an interface. In
this example, router R2 is configured to receive and send RIP version 1 and version 2
information on both eth-0-1 and eth-0-2 interfaces.
eth-0-2 eth-0-2 eth-0-1 eth-0-1

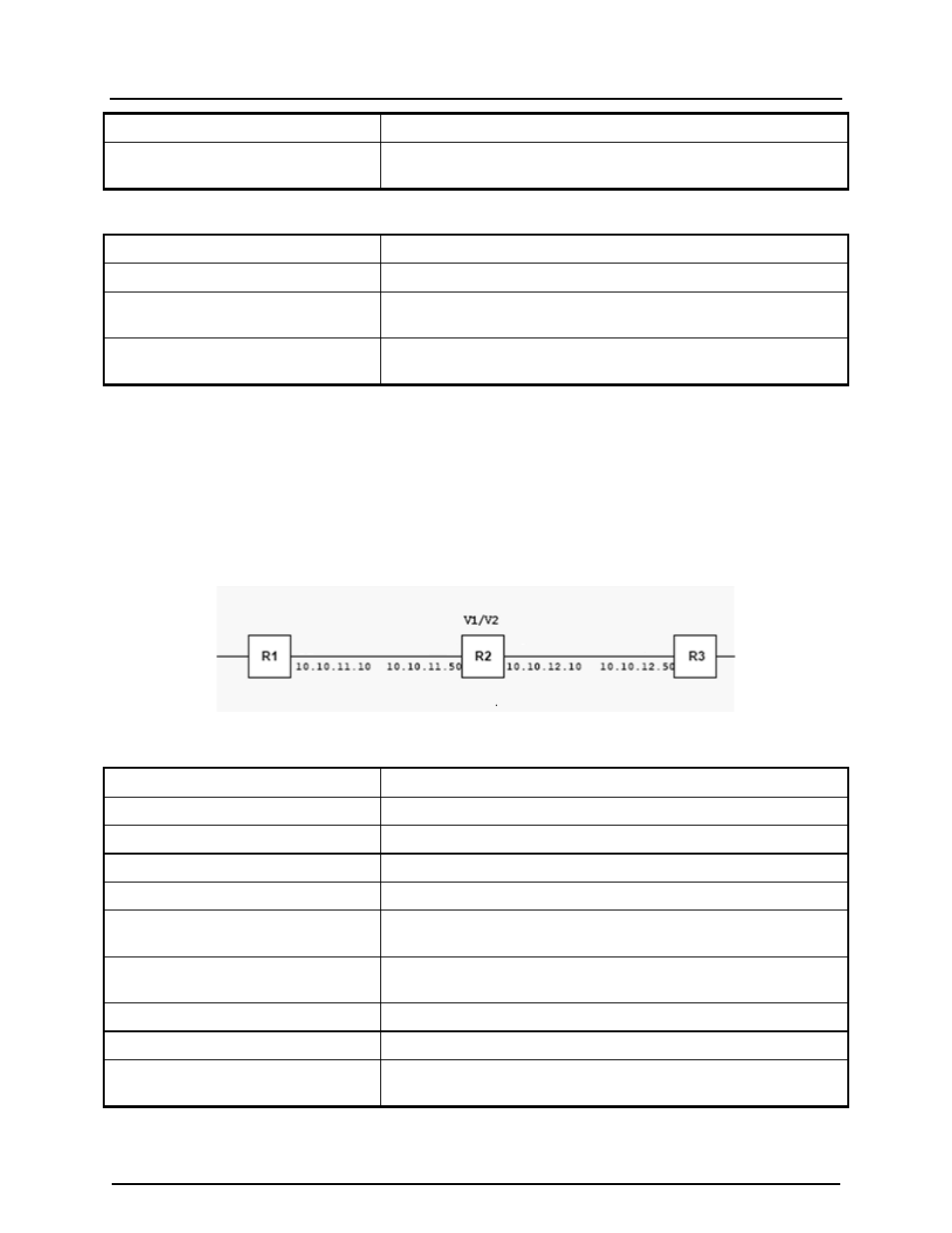

Figure 16-2: RIP Topology II
R2
DUT# configure terminal Enter the Configure mode.
DUT(config)# router rip Enable the RIP routing process.
DUT(config-router)# exit
DUT(config)# interface eth-0-1 Specify interface eth-0-1 as an interface you want to configure.
DUT(config-if)# ip rip send version 1 2 Allow sending RIP version 1 and version 2 packets out of this interface.
DUT(config-if)# ip rip receive version 1
2 Allow receiving of RIP version 1 and version 2 packets from the
eth-0-1 interface.
DUT(config-if)# quit Quit the Interface mode and return to Configure mode to configure the
next interface.
DUT(config)# interface eth-0-2 Specify interface eth-0-2 as an interface you want to configure.
DUT(config-if)# ip rip send version 1 2 Allow sending RIP version 1 and version 2 packets out of this interface.
DUT(config-if)# ip rip receive version 1
2 Allow receiving of RIP version 1 and version 2 packets from the
eth-0-2 interface.
