CanogaOS Configuration Guide
5-2

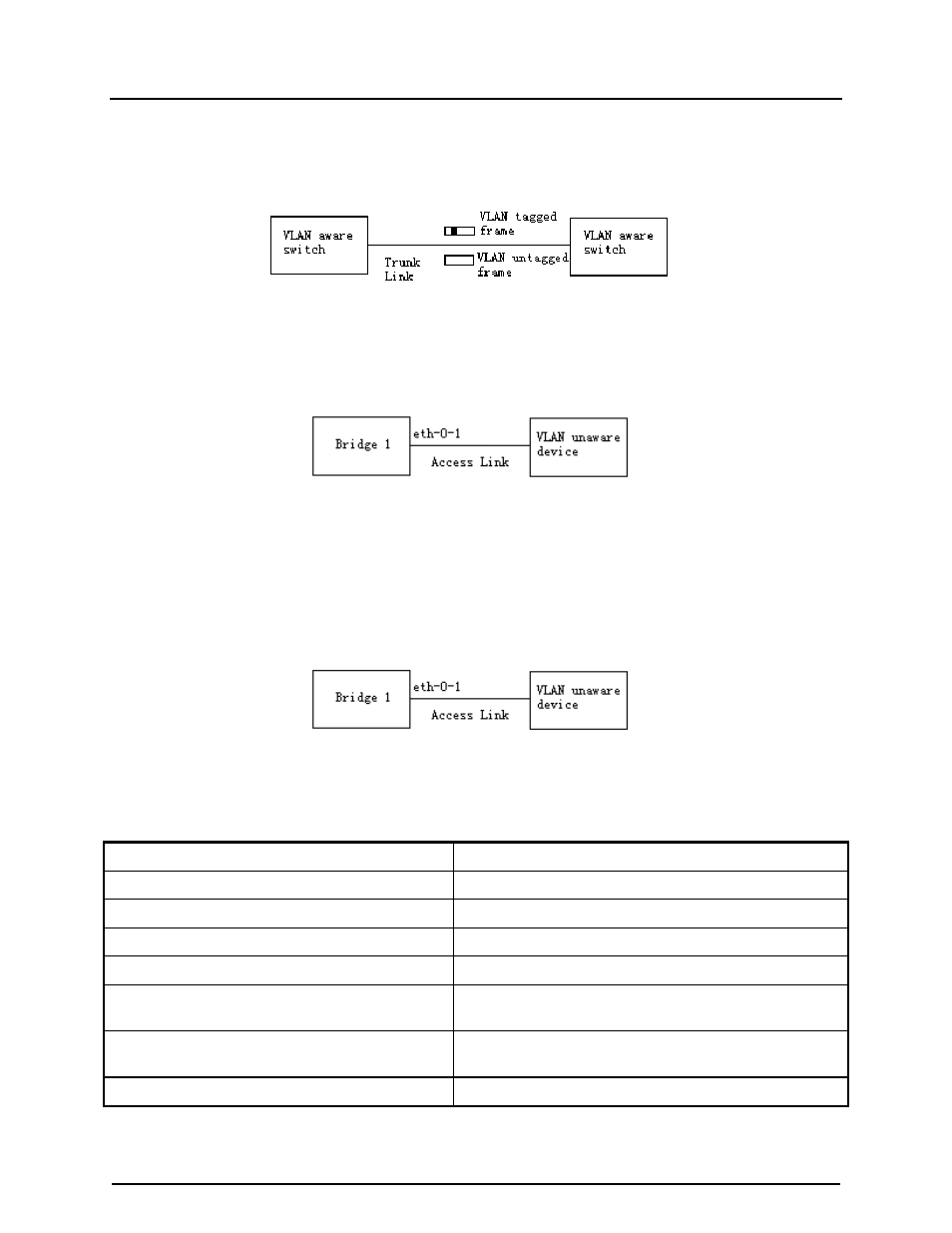

Figure 5-1: VLAN Tagged Frame
Trunk Link
Both tagged and untagged frames can be transmitted on this link. Trunk link allow for
multiple VLANs to cross this link.
Figure 5-2: Trunk Link
Access Link
Only untagged frames can be transmitted on this link. Access link is at the edge of the
network, where end stations attach.
Figure 5-3: Access Link
5.4 Configuring Access Port
Access port only receives untagged or priority-tagged frames, and transmits untagged
frames.
5.4.1 Topology
Figure 5-4: Access Port
5.4.2 Configurations
Bridge 1
DUT#configure terminal Enter the Configure mode.
DUT(config)#vlan database Enter the VLAN database mode.
DUT(config-vlan)#vlan 2 Create VLAN 2
DUT(config-vlan)#exit Exit VLAN database mode.
DUT(config)#interface eth-0-1 Enter the interface mode.
DUT(config-if)#switchport mode access Set the switching characteristics of this interface to access
mode.
DUT(config-if)#switchport access vlan 2 Enable VLAN port access by specifying the VLAN ID 2 on
this interface.
DUT(config-if)#end Exit to exec mode.
